CloudBees action: Publish test results

Use this action to publish test results if you are using a CloudBees platform workflow. This action supports many popular testing tools, and enables testing results from platform workflow run to be displayed in the Test results tab of Run details and in the Test insights analytics dashboard.

All CloudBees action repositories are listed at CloudBees, Inc. on GitHub.

Inputs

Table 1. Input details
Input name	Data type	Required	Description
`test-type`	String	Yes	The name of the testing tool^[1].
`results-path`	String	Yes	The pattern, file, or directory path of the test report to convert.

^[1] The testing tool name must be formatted correctly, in either all lowercase, or all uppercase.

Supported testing tools

Only the testing tools listed in the table below are supported for use in this action.

Use the given test-type input format to specify a testing tool.

Table 2. Supported testing tool names and `test-type` format
Supported tool name	Accepted `test-type` input formats
	lowercase	UPPERCASE
GO	`go`	`GO`
Jest	`jest`	`JEST`
JMeter	`jmeter`	`JMETER`
JUnit	`junit`	`JUNIT`
MSTest	`mstest`	`MSTEST`
Playwright	`playwright`	`PLAYWRIGHT`
ProdPerfect	`prodperfect`	`PRODPERFECT`
Selenium	`selenium`	`SELENIUM`
TestNG	`testng`	`TESTNG`
Tosca	`tosca`	`TOSCA`

Usage examples

Basic example

The following is a basic example of using the action:

      - name: Publish test results
        uses: cloudbees-io/publish-test-results@v2
        with:
          test-type: TESTNG
          results-path: /example/mytest▼

Go test example

To use the GO testing tool, you must first capture the output into a log, and then convert the log into a JUnit test report. Then you can use this action to publish the test results to the CloudBees platform.

In the following example, the following external tools are used to capture the data and create a test report:

go-junit-report
Go CTRF JSON format support to create test reports that follow the Common Test Report Format (CTRF) standard.

apiVersion: automation.cloudbees.io/v1alpha1
kind: workflow
name: GO-test

on:
  push:
    branches:
      - main

jobs:
  GO-testing:
    steps:
      - name: Check out source code
        uses: cloudbees-io/checkout@v1
        with:
          repository: gh-org/my-repo
          ref: main
          token: ${{ secrets.GIT_PAT }}

      - name: Get test reports
        uses: docker://golang:1.22-alpine
        shell: sh
        run: |
          export PATH="${PATH}:${GOPATH}/bin"
          go install github.com/jstemmer/go-junit-report@latest
          go install github.com/ctrf-io/go-ctrf-json-reporter/cmd/go-ctrf-json-reporter@latest
          mkdir ${{ cloudbees.workspace }}/test_reports
          go clean
          go test -v 2>&1 ./... | go-junit-report > ${{ cloudbees.workspace }}/test_reports/report.xml
          go test -json ./... | go-ctrf-json-reporter -output ${{ cloudbees.workspace }}/test_reports/report.json

      - name: Publish test results to platform
        uses: cloudbees-io/publish-test-results@v1
        with:
          folder-name: ${{ cloudbees.workspace }}/test_reports
          test-type: go▼

After the run has completed, the test report is displayed in both Analytics Test insights and Run details Test results in the CloudBees platform.

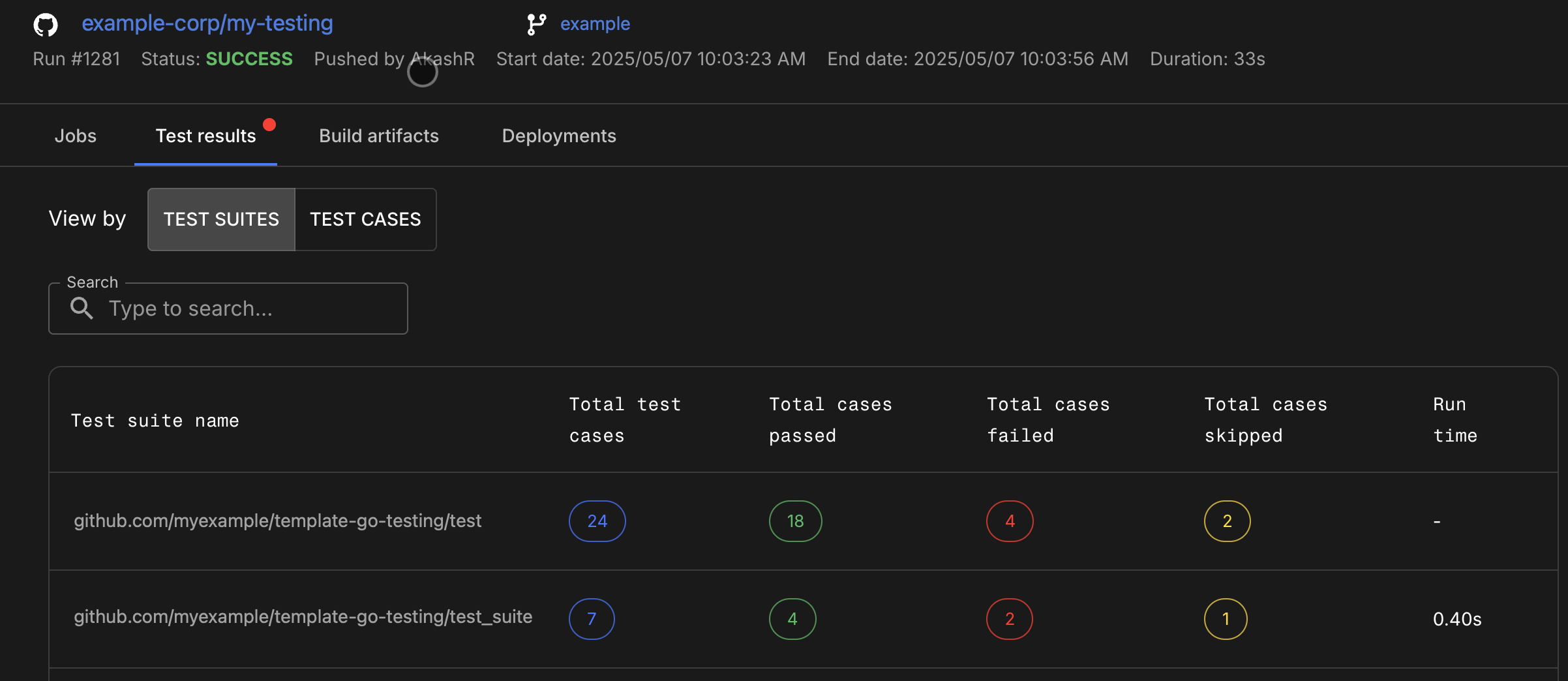

Figure 1. GO testing results displayed in Test results.

Playwright test example

In the following example, source code from a repository is checked out in the CloudBees platform and tested with the Playwright tool. After configuring AWS credentials, the test results are compressed and archived using Docker. The test results are uploaded to an AWS S3 bucket and published as evidence in the CloudBees platform.

Example workflow YAML file

apiVersion: automation.cloudbees.io/v1alpha1
name: trigger-publish-test-results-action
kind: workflow

on:
  pull_request:
    branches:
      - main
  push:
    branches:
      - main

jobs:
  Playwright-Test:
    steps:
      - name: Check out source code
        uses: cloudbees-io/checkout@v1
        with:
          repository: my-name/my-repo-name

      - name: PlayWright test
        uses: cloudbees-io/publish-test-results@v2
        with:
          test-type: playwright
          folder-name: ${{ cloudbees.workspace }}/test_data/playwright/results_failed.json

      - name: Configure AWS credentials
        uses: cloudbees-io/configure-aws-credentials@v1
        with:
          aws-region: us-east-1
          aws-access-key-id: ${{ secrets.MY_AWS_ID }}
          aws-secret-access-key: ${{ secrets.MY_AWS_SECRET_KEY }}

      - id: compress-and-archive-test-evidence
        name: Compress and archive test evidence
        uses: docker://golang:1.20-alpine
        shell: sh
        run: |
          mkdir -p ${{ cloudbees.workspace }}/test-data/playwright/test-results
          tar -czf ${{ cloudbees.workspace }}/test-data/playwright/test-results.tar.gz -C ${{ cloudbees.workspace }}/test-data/playwright/test-results .

      - name: S3 upload test evidence archive
        uses: cloudbees-io/s3-upload-object@v1
        with:
          file-path: ${{ cloudbees.workspace }}/test-data/playwright/test-results.tar.gz
          bucket-name: my-testing-logs
          s3-path: s3-folder/${{ cloudbees.run_id}}.tar.gz
          send-artifact-info: "true"

  Test-evidence:
      steps:
      - name: Publish evidence item
        uses: cloudbees-io/publish-evidence-item@v1
        with:
          content: |
            - Run ID: ${{ cloudbees.run_id }}
            - [backend.tar](https://ourcompany.com/repo/backend.tar)▼
