Publish container images

4 minute read

In this tutorial we will complete our CI/CD pipeline by adding container image building and publishing to Docker Hub, creating end-to-end automation from code commit to deployed artifacts. Along the way we will encounter secure credential management, container registry integration, and complete CI/CD workflow automation.

By the end, you will have a complete CI/CD pipeline that automatically builds, tests, scans, and publishes containerized applications to a registry.

Before we begin, ensure you have:

Set up Docker Hub prerequisites

First we need to prepare Docker Hub for automated container publishing by creating a repository and secure access credentials.

  1. Create a new empty repository in Docker Hub, named my-sample-go-app. To learn more, refer to the Docker Hub documentation.

  2. Create a Docker personal access token.

CloudBees strongly recommends that you create and use a Docker personal access token instead of a password to maintain security and protect your account.

Your Docker Hub account is now ready with a repository for publishing and secure credentials for automation access.

Configure secure Docker credentials

Now we’ll store your Docker credentials securely in CloudBees Unify as properties, making them available to workflows while maintaining security through encryption.

To store your Docker username:

  1. Select Configurations  Properties.

  2. Select Create property.

  3. Enter QUICKSTART_DOCKER_USERNAME as the Property name.

  4. Select String from the Data type options.

  5. Enter your Docker username as the Value.

  6. Select Save.

Your Docker username is stored unencrypted and is available for use in CloudBees Unify workflows.

To store your Docker access token:

  1. Select Configurations  Properties.

  2. Select Create property.

  3. Enter QUICKSTART_DOCKER_TOKEN as the Property name.

  4. Select String from the Data type options.

  5. Enter your Docker token as the Value.

  6. Select Secret.

  7. Select Save.

Your Docker personal access token is stored encrypted for security, and is available for use in CloudBees Unify workflows. The distinction between public properties and encrypted secrets ensures sensitive credentials remain protected while allowing workflows to access them securely.

Add container publishing to your workflow

Now we’ll extend our existing workflow with Docker registry configuration and container publishing steps, completing our CI/CD pipeline automation.

Configure Docker Hub registry access

First, add a step that signs into Docker Hub using the secure credentials we configured. This step uses the CloudBees Configure OCI credentials action to create authorization from your Docker username and token.

  1. Select Components, and then select a component from the list.

  2. Select Edit YAML on your workflow.

  3. Enter the following in the code editor, starting just after your SonarQube scan step:

          - name: Set up Docker Hub registry
        uses: https://github.com/cloudbees-io/configure-oci-credentials@v1
        with:
          registry: index.docker.io
          username: ${{ vars.QUICKSTART_DOCKER_USERNAME }}
          password: ${{ secrets.QUICKSTART_DOCKER_TOKEN }}
    ▼

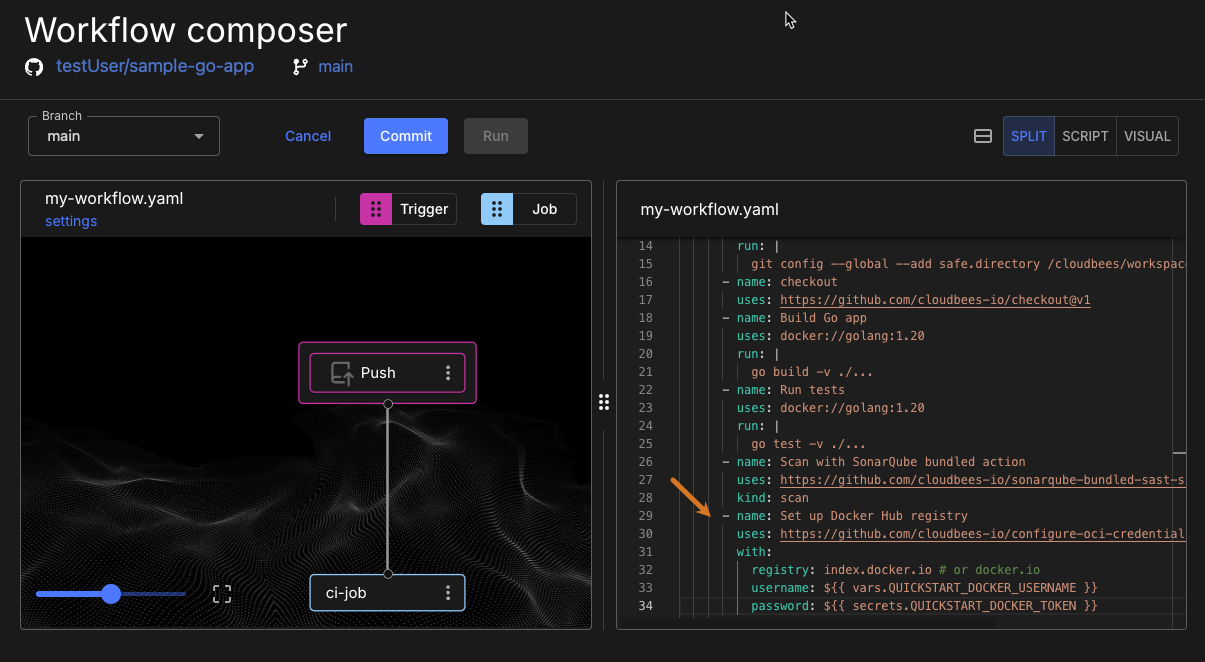

Docker sign-in step
Figure 1. Docker setup step with Commit highlighted

The registry configuration step securely authenticates with Docker Hub using the credentials stored in CloudBees Unify properties.

Add container image publishing

Now we’ll add the final step that builds and publishes our container image using Kaniko, a tool for building container images from a Dockerfile. The CloudBees Kaniko action enables container building and publishing in a single workflow step.

  1. Enter the following in the code editor, starting just after your Set up Docker Hub registry step:

          - name: Push image to registry
        uses: https://github.com/cloudbees-io/kaniko@v1
        with:
            destination: ${{ vars.QUICKSTART_DOCKER_USERNAME }}/my-sample-go-app:1.0.0
    ▼
The destination key uses the format <Docker username>/<Docker repository name>:<Tag label>, referencing your Docker username from properties and applying the tag label 1.0.0.

Your workflow now includes complete CI/CD automation: build, test, security scan, and container publishing.

Check to confirm that your workflow includes all steps in sequence: git configuration, checkout, build, test, scan, registry setup, and image publishing.

Run your complete CI/CD pipeline

Let’s commit our enhanced workflow and observe the complete automation pipeline from code to published container.

  1. Select Commit.

  2. Enter a Commit message.

  3. Select Commit to current branch.

  4. Select Finish.

The complete pipeline runs automatically after the commit, executing all phases including container building and publishing. This process may take several minutes as it performs build, test, scan, and container publishing operations.

  1. Select your component, and then select Runs from the left pane.

  2. Select Display run to the right of your run.

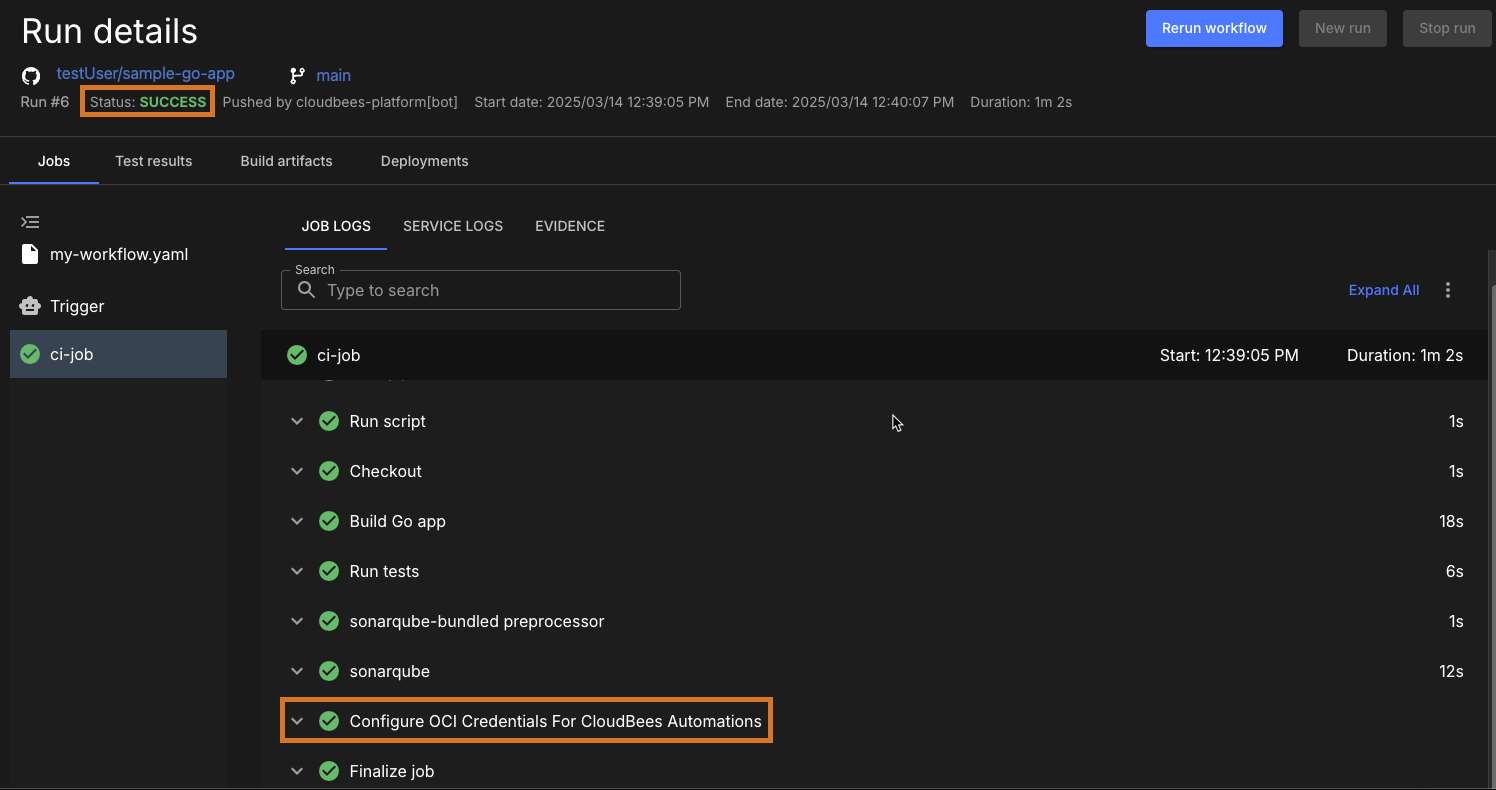

Successful run
Figure 2. Successful run with sign-in step highlighted

The workflow run shows successful execution of all automation phases, including secure Docker authentication and container publishing. Each step provides detailed logging to verify successful completion and troubleshoot any issues.

Verify published container image

Now let’s confirm that our container image was successfully published to Docker Hub with proper tagging and metadata.

  1. Navigate to your Docker Hub account and repository.

  2. Verify that the my-sample-go-app repository contains the published image with tag 1.0.0.

The published container image appears in Docker Hub with automated tagging from the workflow context, demonstrating successful end-to-end CI/CD automation. The image is immediately available for deployment, distribution, or further automation workflows.

Your complete CI/CD pipeline now automatically transforms code commits into tested, scanned, and published container artifacts without manual intervention.

What we accomplished

We have successfully completed a full CI/CD pipeline that automatically builds, tests, scans, and publishes containerized applications to Docker Hub. Along the way we encountered secure credential management, container registry integration, and end-to-end automation workflows.

You now have a complete CI/CD pipeline that transforms code changes into deployed artifacts automatically, demonstrating modern DevSecOps practices with integrated security and streamlined delivery.

From here, you can:

  • Explore advanced deployment workflows and orchestration platform integration.

  • Customize container tagging strategies and image lifecycle management.

  • Integrate additional testing phases or deployment targets into your automation pipeline.
