Deploy with Helm

Package, push, install, and uninstall Helm charts in your CloudBees Unify workflows using CloudBees Helm actions.

Pushing a Helm chart requires OCI registry credentials to be configured before the push step. Refer to Configure container registry credentials.

Package a Helm chart

Use the cloudbees-io/helm-package action to package a Helm chart directory into a versioned TGZ archive file.

All CloudBees action repositories are listed at CloudBees, Inc. on GitHub.

Inputs

Table 1. Input details
Input name	Data type	Required?	Description
`chart`	String	Yes	The path of the Helm chart to be packaged.
`destination`	String	Yes	The path of the packaged Helm chart.
`version`	String	Yes	The Helm release version.
`app-version`	String	Yes	The application version.
`verify`	Boolean	No	Default is `false`. When value is `true`, the package is verified.
`sign`	Boolean	No	Default is `false`. When value is `true`, the package is signed.
`sign-key`	String	No	The signing key.

Usage example

In your YAML file, add:

      - name: Package Helm chart
        uses: https://github.com/cloudbees-io/helm-package@v1
        with:
          chart: ./charts/example
          destination: ./output-directory
          version: "0.0.1"
          app-version: "0.3.0"
          verify: "false"
          sign: "false"
          sign-key: "mykeyname"▼

Push a Helm chart

Use the cloudbees-io/helm-push action to publish a packaged Helm chart to an OCI registry. The action also registers the chart as a trackable artifact in CloudBees Unify.

All CloudBees action repositories are listed at CloudBees, Inc. on GitHub.

Automatic artifact data reporting

This action reports artifact-related data to the workflow run for artifact traceability purposes.

Do not include the Register and track artifacts action for the same artifact version, as the resulting run would register duplicate artifact entries to CloudBees Unify.

Inputs

Table 2. Input details
Input name	Data type	Required?	Description
`artifact-name`	String	No	The name of the artifact, used when registering the build artifact in CloudBees Unify. If not provided, the artifact name defaults to the name of the chart.
`chart`	String	Yes	The path of the Helm chart package to be published.
`commit`	String	No	The commit ID from the source repository, used when registering the build artifact in CloudBees Unify. Default is `${{ cloudbees.scm.sha }}`.
`component-id`	String	No	The component ID associated with the artifact. If not provided, the artifact is registered with the component of the current workflow run. Default is `${{ cloudbees.component.id }}`.
`ref`	String	No	The ref or branch of the source repository, used when registering the build artifact in CloudBees Unify. Default is `${{ cloudbees.scm.ref }}`.
`remote`	String	Yes	The URL of the published Helm chart package.
`repository-url`	String	No	The clone URL of the source repository, used when registering the build artifact in CloudBees Unify. Default is `${{ cloudbees.scm.repositoryUrl }}`.

Outputs

Table 3. Output details
Output name	Data type	Description
`artifact-id`	String	The unique identifier of the artifact reported to CloudBees Unify.
`chart`	String	The image reference pointing to the chart upload location.
`version`	String	The version of the uploaded Helm chart package.

Usage examples

The following examples show a basic push and a full workflow that packages, configures registry credentials, pushes, and verifies the output.

Basic example

    - name: Push Helm chart
      uses: https://github.com/cloudbees-io/helm-push@v1
      with:
        chart: ./charts/example
        remote: oci://registry.example.com/example▼

Full workflow example

The following workflow packages and publishes a Helm chart to an AWS ECR registry, which is compatible with Open Container Initiative (OCI) standards, then verifies the output.

Example workflow YAML file

apiVersion: automation.cloudbees.io/v1alpha1
kind: workflow
name: test

on:
  push:
    branches:
      - '**'

jobs:
  test:
    permissions:
      scm-token-own: read
      id-token: write
    steps:
    - name: Get source code
      uses: cloudbees-io/checkout@v1
      with:
        repository: my-name/my-repo-name
    - name: Package the Helm chart
      id: package
      uses: cloudbees-io/helm-package@v1
      with:
        chart: my-name/my-repo-name/charts/example
        destination: ./chart-output
    - name: Login to AWS
      uses: https://github.com/cloudbees-io/configure-aws-credentials@v1
      with:
        aws-region: us-east-1
        role-to-assume: ${{ vars.oidc_staging_iam_role }}
        role-duration-seconds: "3600"
    - name: Configure container registry for staging ECR
      id: ecrconfig
      uses: cloudbees-io/configure-ecr-credentials@v1
    - name: Push Helm chart
      id: push-chart
      uses: cloudbees-io/helm-push@v1
      with:
        chart: ${{ steps.package.outputs.chart }}
        remote: oci://123456789012.dkr.ecr.us-east-1.amazonaws.com/for-testing
    - name: Verify the output
      uses: docker://alpine/helm:3.12.1
      run: |
        set -x
        [ "$CHART" = oci://123456789012.dkr.ecr.us-east-1.amazonaws.com/for-testing/example-chart ]
        [ "$VERSION" = 3.2.1 ]
        MANIFEST="$(helm template myrelease $CHART --version=$VERSION)"
        echo "$MANIFEST" | grep -q "my example data"
        echo "The artifact ID for $CHART:$VERSION is ${{ steps.push-chart.outputs.artifact-id }}"
      env:
        CHART: ${{ steps.push-chart.outputs.chart }}
        VERSION: ${{ steps.push-chart.outputs.version }}▼

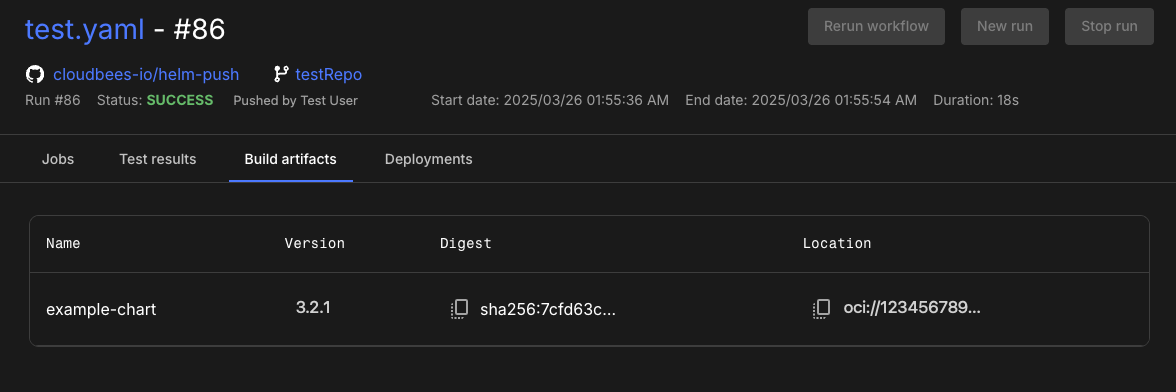

After the run completes, the artifact version and chart reference output display in both Components Artifacts and Run details Build artifacts in CloudBees Unify.

Figure 1. Artifact information in Build artifacts

Install a Helm chart

Use the cloudbees-io/helm-install action to install a Helm chart into a Kubernetes cluster.

This action does not support using Helm charts from traditional Helm repositories, because it does not expose a repository input.

All CloudBees action repositories are listed at CloudBees, Inc. on GitHub.

Inputs

Table 4. Input details
Input name	Data type	Required?	Description
`release-name`	String	Yes	The Helm release name.
`chart-location`	String	Yes	The Helm chart location, which is one of the following: An OCI-based chart URL. A local chart in TGZ archive format. An unpacked local chart directory.

Usage example

In your YAML file, add:

      - name: Install Helm chart
        uses: https://github.com/cloudbees-io/helm-install@v1
        with:
          release-name: nginx
          chart-location: oci://ghcr.io/nginxinc/charts/nginx-ingress▼

Uninstall a Helm chart

Use the cloudbees-io/helm-uninstall action to remove a Helm chart release from a Kubernetes cluster.

All CloudBees action repositories are listed at CloudBees, Inc. on GitHub.

Inputs

Table 5. Input details
Input name	Data type	Required?	Description
`release-name`	String	Yes	The Helm chart release name.
`namespace`	String	Yes	The Kubernetes namespace.

Usage example

In your YAML file, add:

      - name: Uninstall Helm chart
        uses: https://github.com/cloudbees-io/helm-uninstall@v1
        with:
          release-name: nginx
          namespace: default▼
