Publish test results

Use this action to publish test results from CloudBees Unify workflows. This action supports many popular testing tools and enables test results from workflow runs to be displayed in the Test results tab and in the Test insights analytics dashboard.

Prerequisites

Before you begin, ensure you have:

A CloudBees Unify workflow configured in your repository.
Test execution configured in your workflow job.
Test results generated in a supported format.

Action parameters

Table 1. Input details
Input name	Data type	Required	Description
`test-type`	String	Yes	The name of the testing tool^[1].
`results-path`	String	Yes	The pattern, file, or directory path of the test report to convert.

^[1] The testing tool name must be formatted correctly, in either all lowercase, or all uppercase.

Supported testing tools

Only the testing tools listed in the table below are supported for use in this action.

Use the given test-type input format to specify a testing tool.

Table 2. Supported testing tool names and `test-type` format
Supported tool name	Accepted `test-type` input formats
	lowercase	UPPERCASE
GO	`go`	`GO`
Jest	`jest`	`JEST`
JMeter	`jmeter`	`JMETER`
JUnit	`junit`	`JUNIT`
MSTest	`mstest`	`MSTEST`
Playwright	`playwright`	`PLAYWRIGHT`
ProdPerfect	`prodperfect`	`PRODPERFECT`
Selenium	`selenium`	`SELENIUM`
TestNG	`testng`	`TESTNG`
Tosca	`tosca`	`TOSCA`

Basic usage

The following is a basic example of using the action:

      - name: Publish test results
        uses: cloudbees-io/publish-test-results@v2
        with:
          test-type: TESTNG
          results-path: /example/mytest▼

Publish more than one test run

Most testing tools write their report to a fixed path. A job that runs its tests more than once overwrites the earlier report, and only the last run is published. If that last run produces no test results, it still writes a report, and no results are published at all.

When results-path resolves to more than one report, all of them are published together as a single result: their test suites are combined, and the passed, failed, and skipped totals are summed across every report. You do not need to merge reports yourself before publishing.

To publish every run, give each run its own report file, and point results-path at the directory holding them. The directory name is not significant, but use one that your test tool does not manage. Playwright, for example, empties its own test-results/ output directory at the start of every run.

      - name: Run tests
        uses: docker://mcr.microsoft.com/playwright:v1.60.0-noble
        run: |
          REPORTS=${{ cloudbees.workspace }}/published-reports
          mkdir -p "$REPORTS"

          PLAYWRIGHT_JSON_OUTPUT_FILE="$REPORTS/smoke.json" \
            npx playwright test --grep '@smoke' --reporter=json
          PLAYWRIGHT_JSON_OUTPUT_FILE="$REPORTS/regression.json" \
            npx playwright test --grep '@regression' --reporter=json

      - name: Publish test results
        uses: cloudbees-io/publish-test-results@v2
        with:
          test-type: playwright
          results-path: ${{ cloudbees.workspace }}/published-reports/*.json▼

Use one publish step covering all reports, rather than one publish step per test run. The report paths above are absolute because PLAYWRIGHT_JSON_OUTPUT_FILE is resolved against the working directory rather than the config directory, so a relative value can write to a path the publish step does not scan.

GO testing implementation

To use the GO testing tool, you must first capture the output into a log, and then convert the log into a JUnit test report. Then you can use this action to publish the test results to CloudBees Unify.

In the following example, the following external tools are used to capture the data and create a test report:

go-junit-report
Go CTRF JSON format support to create test reports that follow the Common Test Report Format (CTRF) standard.

apiVersion: automation.cloudbees.io/v1alpha1
kind: workflow
name: GO-test

on:
  push:
    branches:
      - main

jobs:
  GO-testing:
    steps:
      - name: Check out source code
        uses: cloudbees-io/checkout@v1
        with:
          repository: gh-org/my-repo
          ref: main
          token: ${{ secrets.GIT_PAT }}

      - name: Get test reports
        uses: docker://golang:1.22-alpine
        shell: sh
        run: |
          export PATH="${PATH}:${GOPATH}/bin"
          go install github.com/jstemmer/go-junit-report@latest
          go install github.com/ctrf-io/go-ctrf-json-reporter/cmd/go-ctrf-json-reporter@latest
          mkdir ${{ cloudbees.workspace }}/test_reports
          go clean
          go test -v 2>&1 ./... | go-junit-report > ${{ cloudbees.workspace }}/test_reports/report.xml
          go test -json ./... | go-ctrf-json-reporter -output ${{ cloudbees.workspace }}/test_reports/report.json

      - name: Publish test results to platform
        uses: cloudbees-io/publish-test-results@v1
        with:
          folder-name: ${{ cloudbees.workspace }}/test_reports
          test-type: go▼

Playwright testing implementation

In the following example, source code from a repository is checked out and tested with the Playwright tool. After configuring AWS credentials, the test results are compressed and archived using Docker. The test results are uploaded to an AWS S3 bucket and published as evidence.

Example workflow YAML file

apiVersion: automation.cloudbees.io/v1alpha1
name: trigger-publish-test-results-action
kind: workflow

on:
  pull_request:
    branches:
      - main
  push:
    branches:
      - main

jobs:
  Playwright-Test:
    steps:
      - name: Check out source code
        uses: cloudbees-io/checkout@v1
        with:
          repository: my-name/my-repo-name

      - name: PlayWright test
        uses: cloudbees-io/publish-test-results@v2
        with:
          test-type: playwright
          folder-name: ${{ cloudbees.workspace }}/test_data/playwright/results_failed.json

      - name: Configure AWS credentials
        uses: cloudbees-io/configure-aws-credentials@v1
        with:
          aws-region: us-east-1
          aws-access-key-id: ${{ secrets.MY_AWS_ID }}
          aws-secret-access-key: ${{ secrets.MY_AWS_SECRET_KEY }}

      - id: compress-and-archive-test-evidence
        name: Compress and archive test evidence
        uses: docker://golang:1.20-alpine
        shell: sh
        run: |
          mkdir -p ${{ cloudbees.workspace }}/test-data/playwright/test-results
          tar -czf ${{ cloudbees.workspace }}/test-data/playwright/test-results.tar.gz -C ${{ cloudbees.workspace }}/test-data/playwright/test-results .

      - name: S3 upload test evidence archive
        uses: cloudbees-io/s3-upload-object@v1
        with:
          file-path: ${{ cloudbees.workspace }}/test-data/playwright/test-results.tar.gz
          bucket-name: my-testing-logs
          s3-path: s3-folder/${{ cloudbees.run_id}}.tar.gz
          send-artifact-info: "true"

  Test-evidence:
      steps:
      - name: Publish evidence item
        uses: cloudbees-io/publish-evidence-item@v1
        with:
          content: |
            - Run ID: ${{ cloudbees.run_id }}
            - [backend.tar](https://ourcompany.com/repo/backend.tar)▼

Verify test results

After the workflow run completes, you can verify test results in two locations:

Test insights analytics: Navigate to Analytics Test insights to view test trends and performance metrics across multiple workflow runs.
Run details: Navigate to Run details Test results to view test results for a specific workflow run.

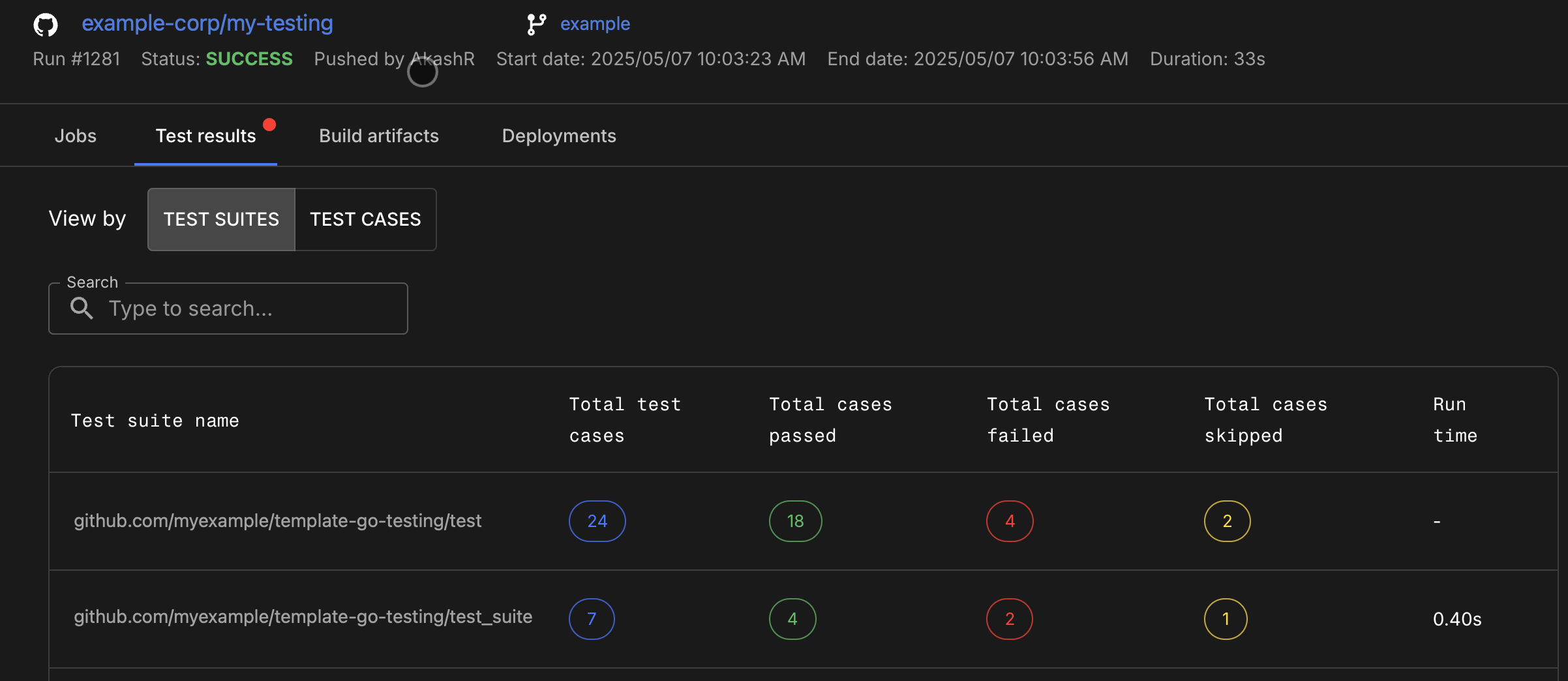

Figure 1. GO testing results displayed in Test results.

Troubleshooting

If test results are not displaying correctly:

Verify your test framework generates output in a supported format.
Confirm the results-path points to the correct test output file or directory.
Check that the test-type matches exactly one of the supported formats listed above.
Ensure test execution completes successfully before the publish action runs.
If your job runs its tests more than once, ensure each run writes its own report file. Otherwise, each run overwrites the previous one and only the last is published.
Test suites are identified by name. If multiple reports contain a suite with the same name, they are recorded as a single suite.
