Edge runner data security

This comprehensive guide of the data security architecture for CloudBees Unify Edge Runners is written for customer security teams, network administrators, and compliance officers evaluating the solution for deployment within their infrastructure.

What are CloudBees Unify Edge Runners?

CloudBees Unify Edge Runners let you execute CI/CD jobs from CloudBees Unify on your own infrastructure while remaining fully integrated with CloudBees Unify. This allows your organization to run builds and workflows on-premises or in a private cloud without exposing internal systems to inbound connections. Edge runners are a standalone binary that you install within your own network.

Security at a glance

The following table summarizes the security features and each implementation detail.

Table 1. Security features and implementation details
Security feature	Implementation
Network direction	Outbound only (port 443)
Transport encryption	TLS 1.2 or higher
Authentication	JWTs with RSA-based signatures (4096-bit keys)
Secrets storage	HashiCorp Vault (encrypted)
Organization isolation	Strict tenant separation

Architecture

The following models for CloudBees Unify Edge Runners include:

Deployment: The deployment model describes how the Edge Runner is installed and configured within your network.
Communication: The communication model describes how the Edge Runner communicates with CloudBees Unify and other services.
Code execution trust: The code execution trust model describes how the Edge Runner executes jobs and manages secrets.
Job execution isolation: Edge runners offer two job execution modes: native and containerized.

Deployment model

The Edge runner is deployed entirely within your network. CloudBees does not deploy any agents, services, or components inside your network beyond the Edge runner binary itself, which you download and manage.

Supported deployment options include:

Virtual machines (Linux)
Bare metal servers

CloudBees does not currently support a container image for the Edge runner. The customer can build their own container image by embedding the binary, which also enables deployment in a container or a Kubernetes pod.

The customer maintains full control over the following:

The operating system and security configuration of the host machine.
The network access and firewall rules for the Edge runner.
Resource allocation and scaling of the Edge runner.
The update and patching schedule of the host machine.

Communication model

Edge runners use a long-polling architecture which the runner initiates all connections to CloudBees Unify. This design provides several security benefits, including:

No inbound network exposure: Your firewall only needs to allow outbound HTTPS traffic.
Proxy compatability: Works with corporate HTTP proxies and NAT gateways.
Graceful degradation: Network interruptions are handled automatically with exponential backoff and retries.

System architecture diagrams

The following diagrams illustrate the system architecture options for CloudBees Unify Edge Runners.

CloudBees Unify with a public SCM

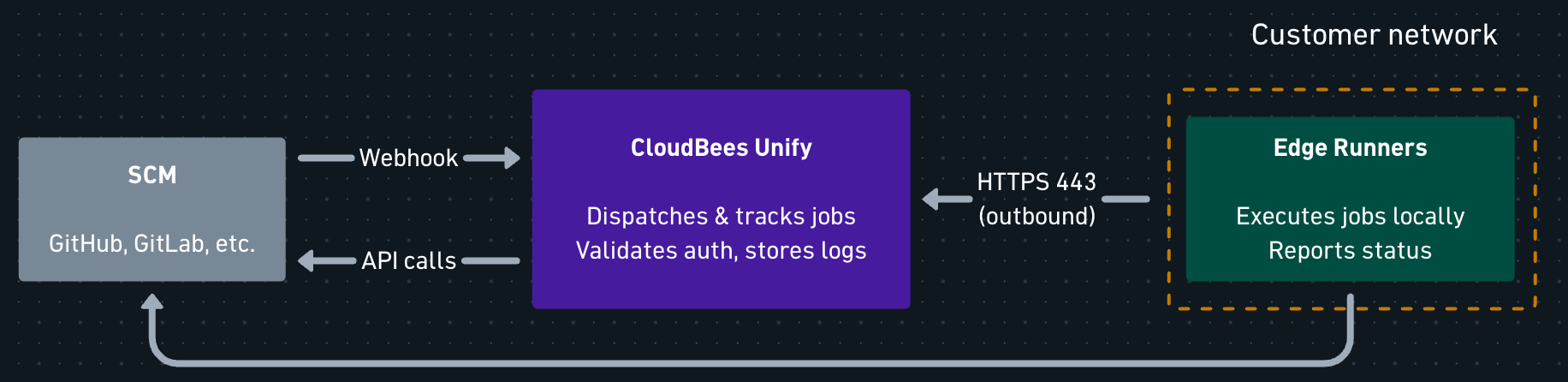

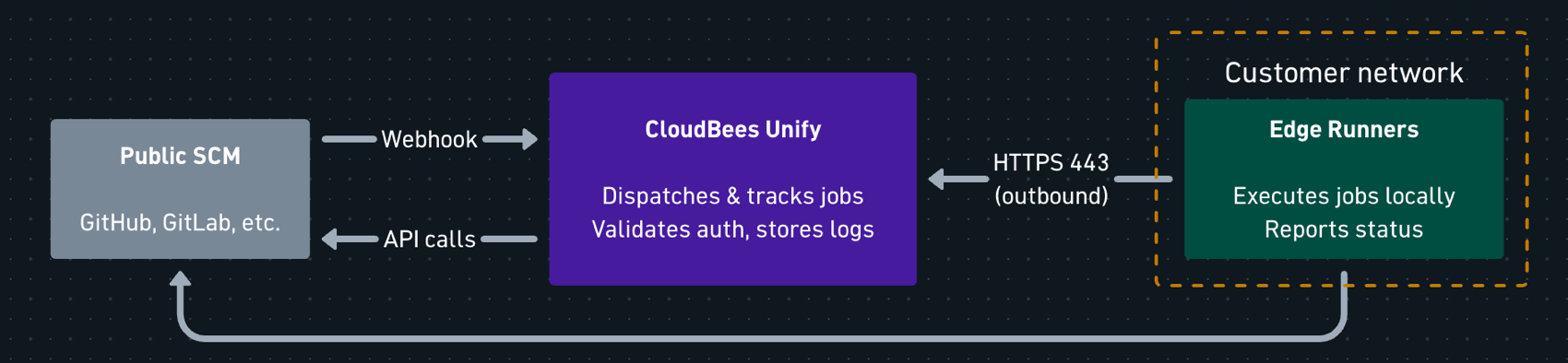

The following diagram is a typical deployment with the CloudBees Unify (cloudbees.io) and a publicly accessible SCM.

Figure 1. CloudBees Unify with a public SCM

CloudBees Unify with a private SCM

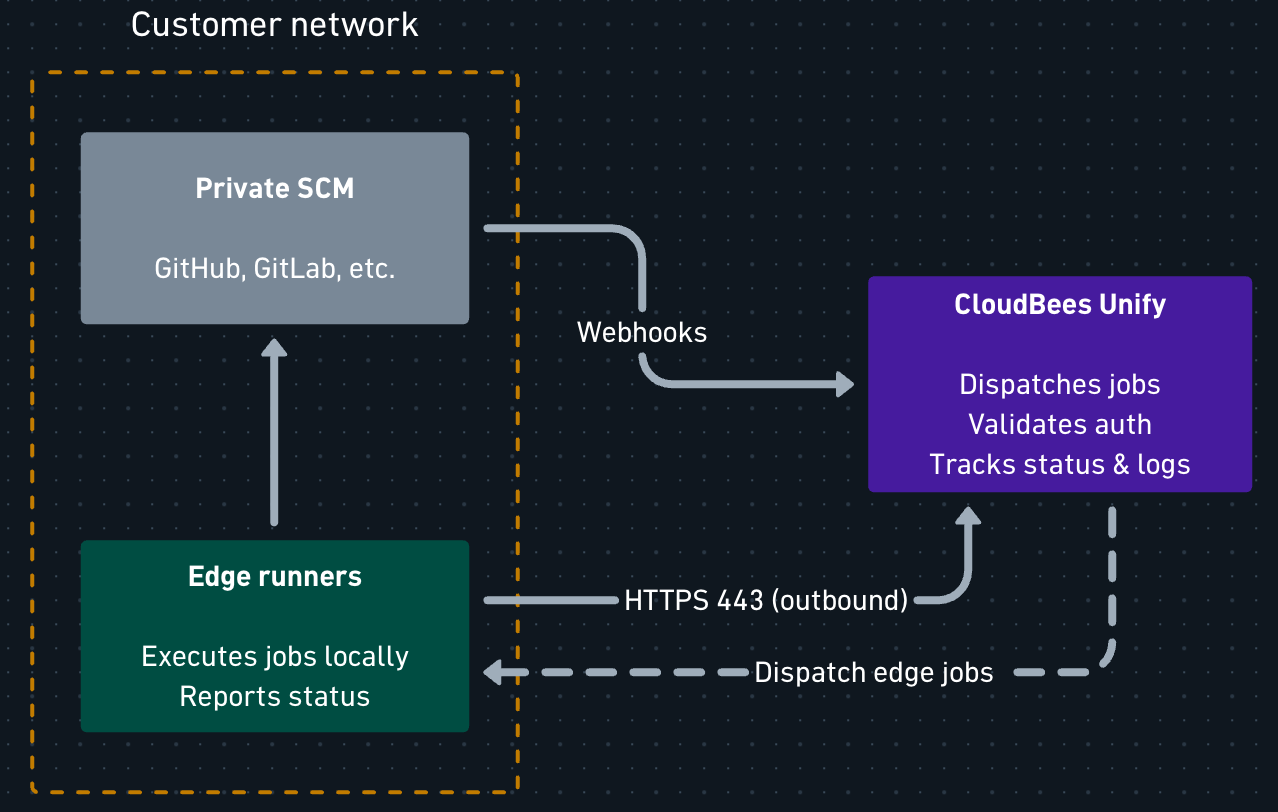

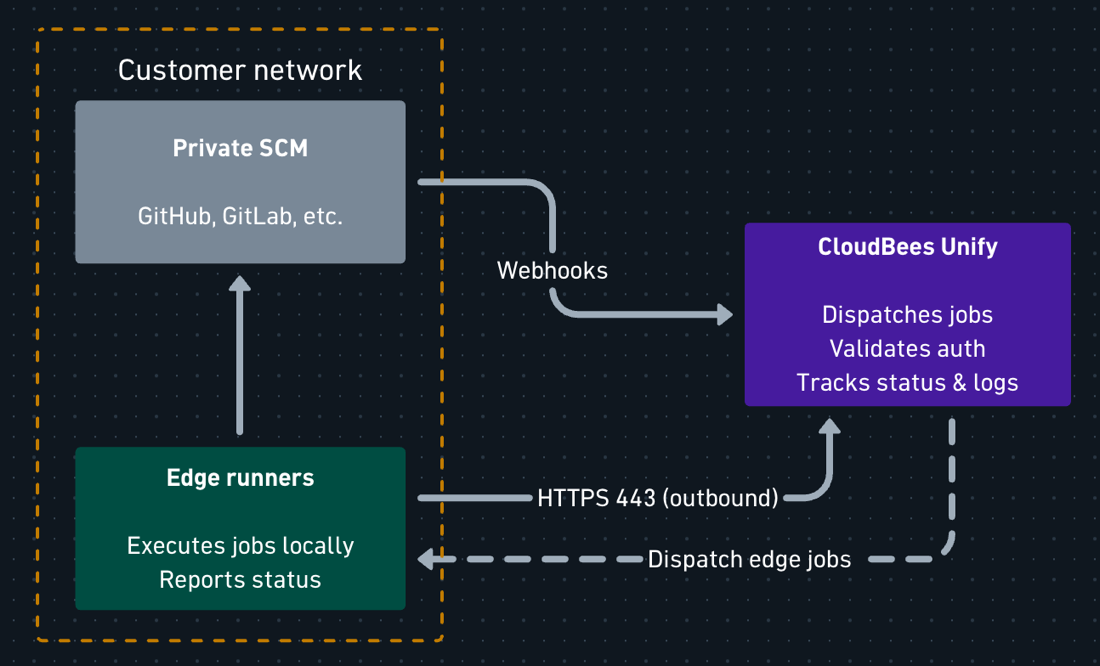

The following diagram is a deployment of CloudBees Unify (cloudbees.io) connecting to a private SCM.

Figure 2. CloudBees Unify with a private SCM

All edge runner connections are outbound from the customer network.

Key points include:

All Edge runner connections originate from the customer network to CloudBees Unify (outbound only).
CloudBees cannot initiate connections into customer infrastructure.
Logs are uploaded directly to AWS S3 by the runner using presigned URLs obtained from CloudBees Unify.

Code execution trust model

Edge runners execute the commands defined in the job definitions they receive from CloudBees Unify. This is an inherent characteristic of CI/CD agents: their purpose is to run commands on behalf of a central platform.

In practice this means:

The Edge runner executes any commands included in a job definition sent by CloudBees Unify.
Job definitions originate from workflows that you own users author within your CloudBees Unify organization.
You trust CloudBees Unify to dispatch only the legitimate jobs that correspond to your configured workflows.

You trust CloudBees Unify to dispatch only the legitimate jobs that correspond to your configured workflows and the required system operations to interact with the integrated private tools, like SCMs.

Mitigating controls:

Jobs are scoped to the organization that owns the runner.
All job dispatches are logged by CloudBees and can be audited if necessary.

Customer consideration: Deploy Edge runners with appropriate isolation (dedicated VMs, containers, and limited network access to internal systems) based on your security requirements, as you would with any other CI/CD agent. For more information, refer to Edge Runners security best practices.

Job execution isolation

CloudBees Unify Edge Runners support two job execution modes: native and Docker. The available mode is selected when you configure the runner, and runners only receive jobs appropriate to their configured execution modes.

Native execution mode

In native mode, the Edge runner runs commands directly on the host operating system, with no isolation or containerization of the executed commands. The runner needs access only to its configured working directory.

Jobs executed in native mode have same access to the local environment as the user running the Edge runner. This means a job can:

Read or write files accessible to that user, including files outside the job’s working directory.
Invoke any executable available to that user.
Make the same network calls that the runner itself can make.
For workflows, read any secret used by any step in the job (any step can read any other step’s secrets).

When executing workflows in native mode, the runner dynamically downloads the CloudBees workflow runtime binary and uses it to execute the job’s steps. his download occurs over a secure TLS connection, and the binary is signed by CloudBees. After downloading, the runtime’s signature is verified against an RSA public key embedded in the runner binary. This runtime supports DSL features such as expressions, conditional evaluation, and secret masking.

Docker execution mode

In Docker mode, the Edge runner executes each job step in a separate Docker container. This provides isolation between jobs and the host environment. The runner must have access to a Docker-compatible container runtime via the Docker socket interface, as well as its configured working directory.

A range of hardening controls is applied:

Containers run with NET_RAW dropped, retaining the rest of Docker’s default capability set to match non-Edge Runner CloudBees Unify workflow execution.
Privilege escalation at execve is blocked via no-new-privileges.
The default Docker seccomp profile is applied to all containers.
Privileged mode is not supported.
Each job gets an isolated Docker network.
Containers are limited to 4096 PIDS.

The containers within a job share volumes that are configured by the CloudBees Unify workflow engine. Workflow authors do not control these volumes or the volume mounts. All mounts are either for ephemeral volumes or for empty directories in the runner working directory.

In Docker mode, steps are also isolated from one another, matching the standard security model for CloudBees Unify workflows that execute within CloudBees infrastructure. For example, a step cannot read secrets intended for other steps.

Data flow analysis

The following section analyzes the data crosses the network boundary between your infrastructure and CloudBees Unify.

Job execution flow

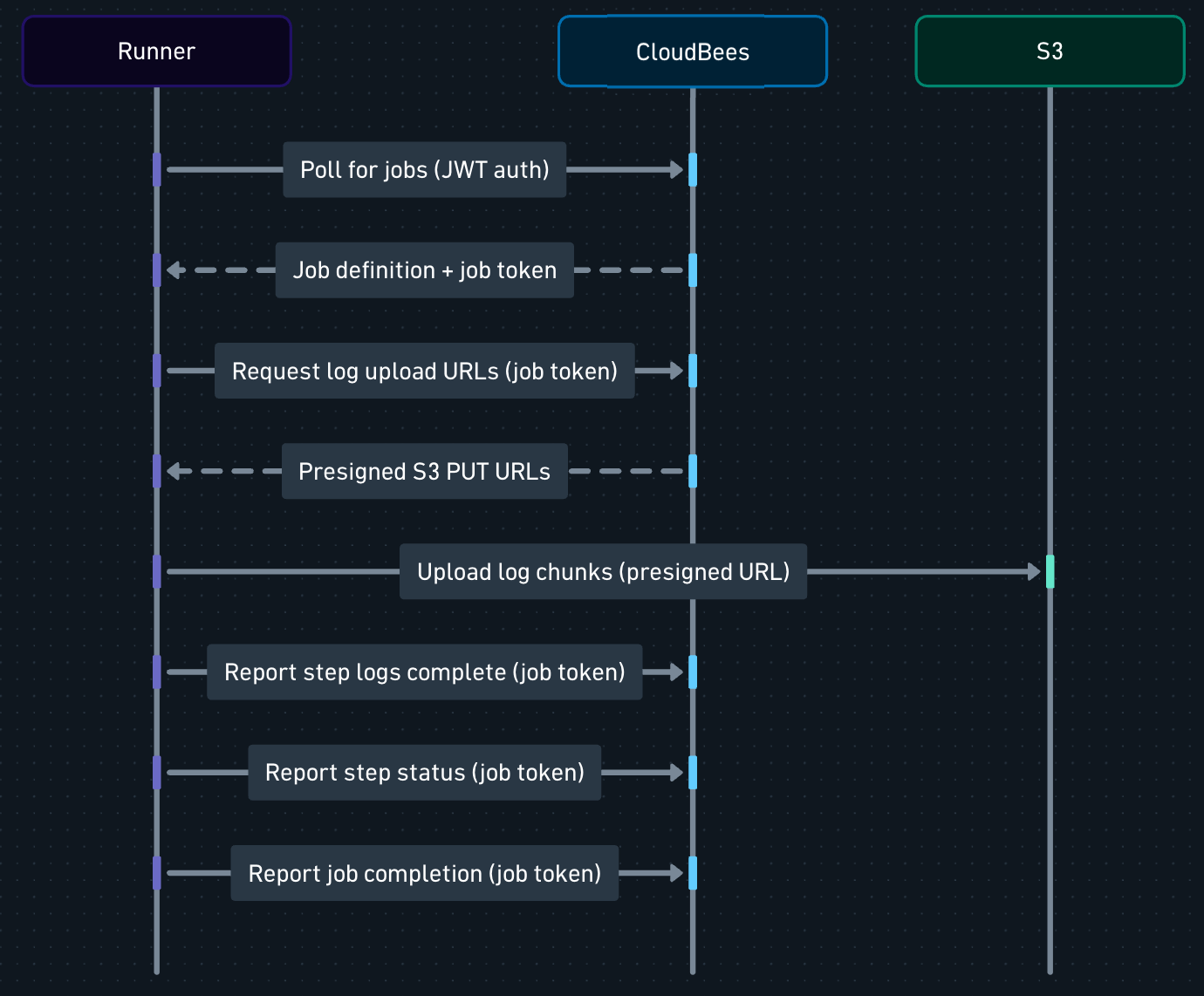

The following illustrates the flow of a job execution from the time a workflow is triggered to the time the job completes. The participants are as follows:

CloudBees as CloudBees Unify
Runner as Edge runner
S3 as AWS S3

Figure 3. Job execution flow

Data transmitted from the customer network to CloudBees Unify

The following tables summarize the data transmitted from the customer network to CloudBees Unify during job execution.

Runner registration

This is a one-time setup to register a runner.

Table 2. Runner registration (one-time setup)
Data element	Description	Sensitivity
Runner name	Customer-defined identifier	Low
Labels	Customer-defined tags for job routing	Low
RSA public key	Generated locally, used for authentication	Low (public key only)
Execution modes	Supported execution modes for the runner	Low

The RSA private key is generated on the Edge Runner host and is never transmitted to CloudBees. It is stored in the runner working directory with owner read/write permissions. Only the public key is shared during registration.

Job polling

This is necessary when checking available work.

Table 3. Job polling requests
Data element	Description	Sensitivity
Runner ID	Unique identifier during registration	Low
Current job ID	If executing a job, its identifier	Low
JWT token	Self-signed authentication token for authenticating the runner	Medium (ephemeral)

Poll requests contain only runner identification. No customer data, source code, or business information is included.

Job status updates

This appears after executing job steps.

Table 4. Job status updates
Data element	Description	Sensitivity
Job/step ID	Identifiers for the job and step	Low
Status	Success, failure, or in-progress	Low
Timestamps	When steps started and completed	Low

Status updates contain only metadata. Execution logs are handled separately. For more information, refer to Execution logs.

Execution logs

Job execution logs are uploaded directly to S3 by the runner and viewed on CloudBees Unify.

First, the runner requests pre-signed S3 PUT URLs (authenticated with job token).
Next, the runner uploads gzipped log chunks directly to S3 using the pre-signed URLs.
Lastly, the runner confirms each upload.

Table 5. Execution logs
Data element	Description	Sensitivity
Console output	stdout/stderr from job execution, gzipped and uploaded to S3	Low
S3 pre-signed URLs	Time-limited bearer credentials for S3 PUT operations (1 hr expiration)	Medium (ephemeral)

The runner never receives S3 credentials directly; access is mediated through pre-signed URLs scoped to specific key paths. When executing workflows on Edge runners, the workflow runtime applies secret masking to console output.

Data transmitted from CloudBees Unify to the customer network

The following tables summarize the data transmitted from CloudBees Unify to the customer network during job execution.

When a job is dispatched to a runner:

Table 6. Job definitions
Data element	Description	Sensitivity
Commands	Scripts and commands to execute	Medium
Environment variables	Configuration including injected secrets	High
Timeouts	Execution time limits	Low
Job metadata	Labels and configuration	Low

Table 7. Authentication tokens
Data element	Description	Sensitivity
Job token	Short-lived token for status reporting and log upload URL requests	Medium
S3 pre-signed URLs	Time-limited PUT URLs for direct log upload to S3	Medium (ephemeral, 1 hr expiration)

All tokens are short-lived and scoped to specific operations. Pre-signed S3 URLs are bearer credentials: anyone possessing the URL can upload to the specified S3 key until the URL expires.

Secrets

Secrets used by the job, including both system-managed secrets and user-controlled secret properties for workflows, are stored in the HashiCorp Vault and passed to the runner when the job is dispatched.

Secrets configured in CloudBees Unify are:

Retrieved from encrypted storage at job dispatch time.
Transmitted over TLS-encrypted connections.
Injected into the job definition as environment variables.
Never stored in CloudBees databases.

Workflow-level secret properties are masked in console output during job execution.

Data not transmitted

The following table summarizes the data categories that are explicitly not transmitted to CloudBees Unify:

Table 8. Data not transmitted
Data type	Details
Runner private key	RSA private key remains on the Edge Runner host
Source code	Unless included in job command output/logs
Build artifacts	Unless explicitly sent to Unify via workflow features
Infrastructure details	Network topology, internal hostnames, and so on
Other customer data	Only job-related metadata is transmitted

Authentication and Authorization

The following covers authentication and authorization information.

Authentication overview

Edge runners use a multi-layer authentication approach that eliminates the need for long-lived credentials:

Table 9. Authentication overview
Phase	Mechanism	Lifetime
Initial registration	Bearer token from admin	1 hour (may be used to register multiple runners)
Ongoing operations	Self-signed JWT with RSA	Generated per request
Job execution	Platform-issued job token	Duration of the job
Log upload	Pre-signed S3 URL	1 hour

Initial registration

During one-time setup:

The organization administrator requests an Edge Runner creation toke (1 hour validity) from CloudBees Unify. (Token generation)
The runner is installed in the customer’s chosen location. (Runner installation)
The customer configures the runner, which triggers the local generation of an RSA keypair. (Runner configuration)
The public key and customer-provided metadata are sent to CloudBees Unify to register the runner, using the runner creation token to authenticate the registration request. (Runner registration)

Ongoing authentication

For all subsequent operations (polling and status updates):

The runner loads its locally stored private key.
A JWT token is generated containing runner identification claims, with a one-minute expiration time.
The token is signed with the private key using the RS256 algorithm.
CloudBees Unify verifies the signature using the stored public key.
Claims are validated (expiration, issuer, and organization).

Key security properties include:

The private key never leaves the customer infrastructure.
Each request generates a fresh, short-lived token.

Cryptographic standards

The following table displays the cryptographic standards for authentication.

Table 10. Cryptographic standards
Component	Standard	Details
Key algorithm	RSA	4096-bit key length
Signature algorithm	RS256	RSA with SHA-256
Token format	JWT	RFC 7519 compliant
Transport encryption	TLS 1.2+	Industry standard

Authorization model

Organization scoping: All runner operations are scoped to a specific organization, which is selected when the runner creation token is created.
Organization inheritance: Edge runners installed in an organization are automatically available to workflows in all suborganizations of that organization.
No cross-tenant access: Strict isolation prevents access to data of other organizations.
Label-based routing: Jobs are dispatched to runners based on matching labels.
Revocation: Edge runners can be deleted via API to invalidate all authentication.

Authentication flow diagrams

The following illustrations show the authentication sequence from initial registration through ongoing operations. The participants are as follows:

Admin
Runner as Edge runner
CloudBees as CloudBees Unify

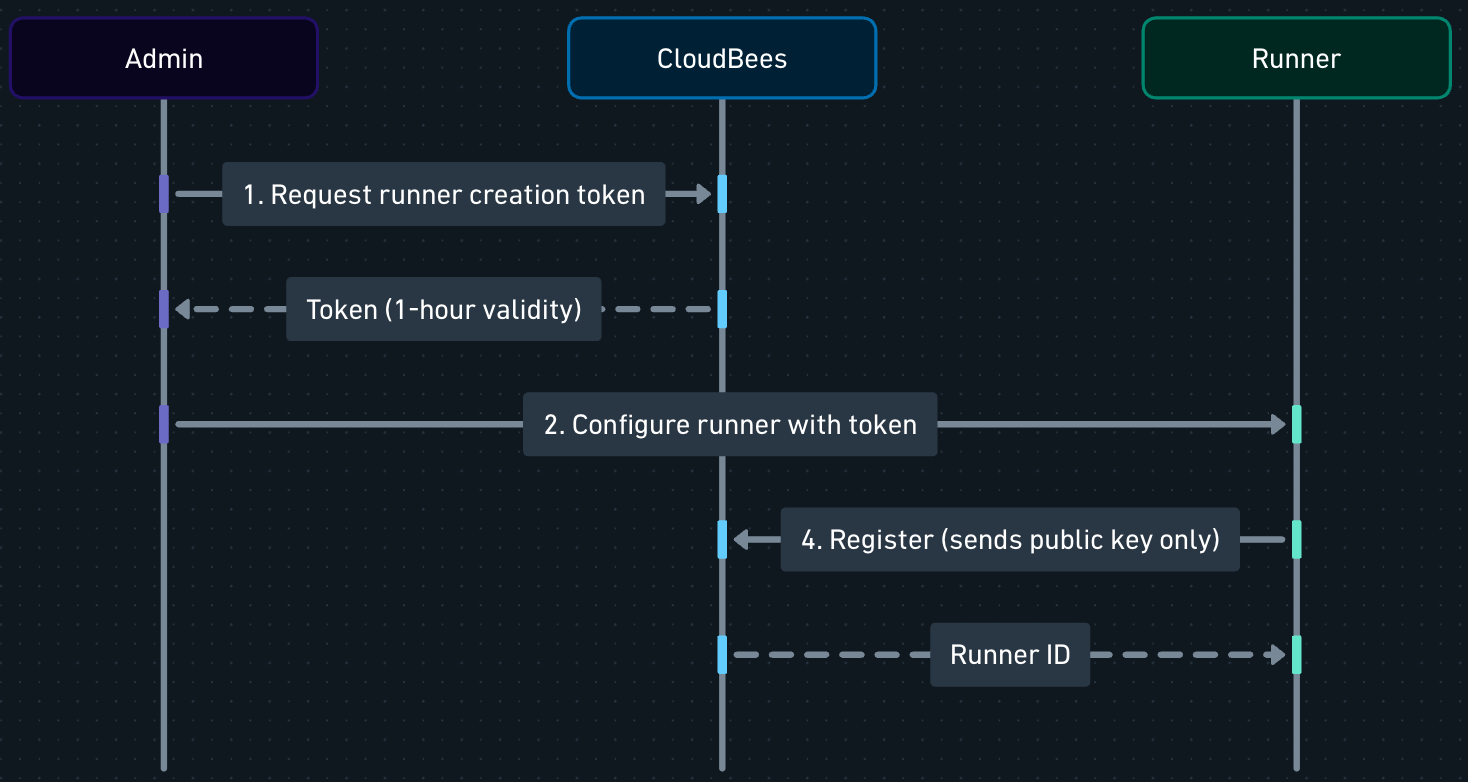

Initial registration:

Figure 4. Initial registration

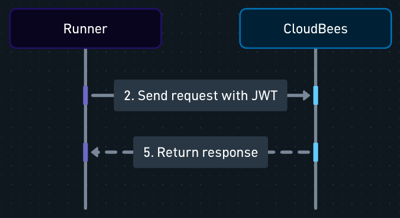

Ongoing operations:

Figure 5. Initial registration

Network requirements

Edge runners require minimal network access:

Table 11. Firewall configuration
Rule	Protocol	Port	Direction	Destination
Required	HTTPS	443	Outbound	CloudBees API, AWS S3, CloudBees downloads site
Not required	Any	Any	Inbound	N/A

No inbound firewall rules are required. Edge runners only make outbound connections.

The following endpoints must be reachable from the runner:

Table 12. Required endpoints
Purpose	Hostname	Protocol	Port
CloudBees API	api.cloudbees.io	HTTPS	443
AWS S3 log upload	s3.us-east-1.amazonaws.com or s3.us-west-2.amazonaws.com	HTTPS	443
Workflow runtime binary download (native mode only)	downloads.cloudbees.com	HTTPS	443
Runner binary download (autoupdates)	downloads.cloudbees.com	HTTPS	443

Runners must be able to reach the AWS S3 endpoint to upload logs via pre-signed URLs. CloudBees Unify uses the us-east-1 and us-west-2 AWS regions.

The runtime binary download endpoint is only required for runners that support native execution mode. In container mode, the runtime is consumed as a Docker image in the job definition.

CloudBees Unify services are hosted on major cloud providers. Specific IP ranges can be provided on request for environments that require IP-based firewall rules. For more information, refer to the allowlist documentation.

Private VPC installations: The endpoints above apply to the multi-tenant CloudBees Unify environment (cloudbees.io). For private VPC installations, the Edge runner connects to your customer-specific CloudBees Unify VPC hostname instead of api.cloudbees.io.

Proxy support

Edge runners support corporate HTTP proxies, such as:

Standard HTTP_PROXY, HTTPS_PROXY, and NO_PROXY environment variables
Proxy authentication, if required
SSL-inspecting proxies (with appropriate certificate configuration)

Connection behavior

While running, Edge runners repeatedly poll CloudBees Unify, holding each polling request open for approximately forty-five seconds. The service returns a non-empty response to send jobs to the runner. When the runner receives a response, it immediately polls again, regardless of the content of the response. Fatal errors cause the runner to terminate (for example, an authentication failure caused by server-side runner deletion).

While executing jobs, Edge runners also make periodic API calls to CloudBees Unify to update job and step statuses.

Compliance alignment

For legal agreements and compliance information, refer to;

Glossary

Table 13. Glossary
Term	Definition
Edge runner	Lightweight agent deployed on customer infrastructure to execute CI/CD jobs
JWT	JSON Web Token - a compact, self-contained token format for authentication
RSA	Rivest-Shamir-Adleman - asymmetric cryptographic algorithm used for signing
RS256	RSA Signature with SHA-256 - specific algorithm for JWT signing
Polling	Communication pattern in which a client repeatedly checks a server for updates
TLS	Transport Layer Security - cryptographic protocol for secure communication
