Troubleshooting CasC for controllers

Validating CasC bundles

Validation of CasC bundles is performed automatically and if problems are detected, a validation message is returned. Each CasC bundle validation message includes the type of validation, a general validation code, and a descriptive message. For example:

ERROR - [VERSIONVAL] - Missing version property in the bundle.yaml file.▼

There are three types of validation messages: ERROR, INFO, and WARNING.

An ERROR indicates a critical problem with the CasC bundle that must be resolved before the bundle can be applied to the instance.
An INFO message lists:
- the validations run during the validation check
- the total number of validations run during the validation check
A WARNING indicates the current file is invalid. However, the entire bundle may still be valid.

For example, when creating items, specific plugins must first be installed. If the bundle contains an items.yaml file with the correct kind property for the item type, but the required plugin is not currently installed, a warning is returned. Since the plugin may be installed once the updated bundle has been applied to the instance, the warning indicates that you should verify the required plugin is included in the plugins.yaml file.

Accessing validation messages

For controller CasC bundles, you can access validation messages on the Configuration as Code export and update screen and the CloudBees Configuration as Code bundles screen.

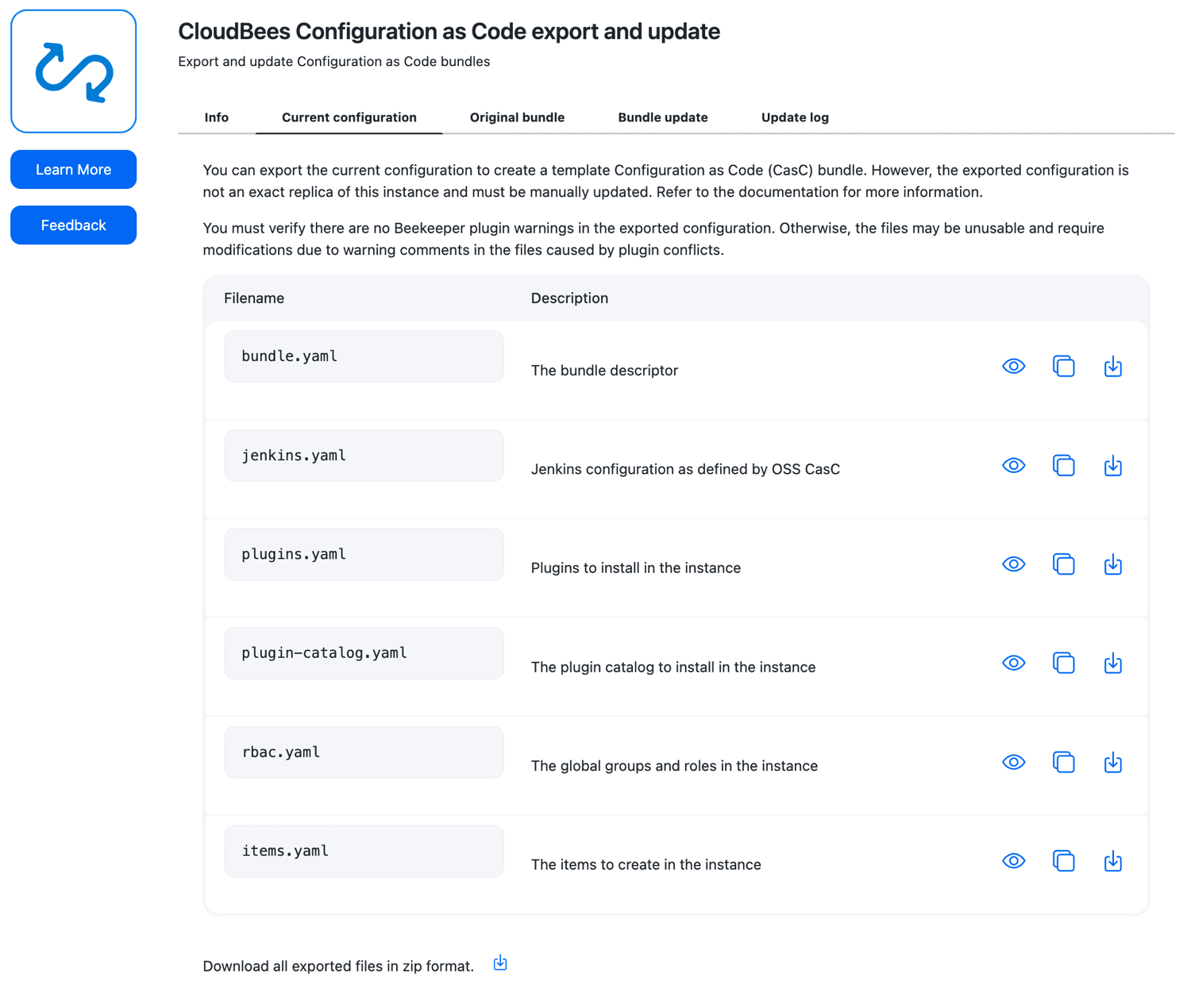

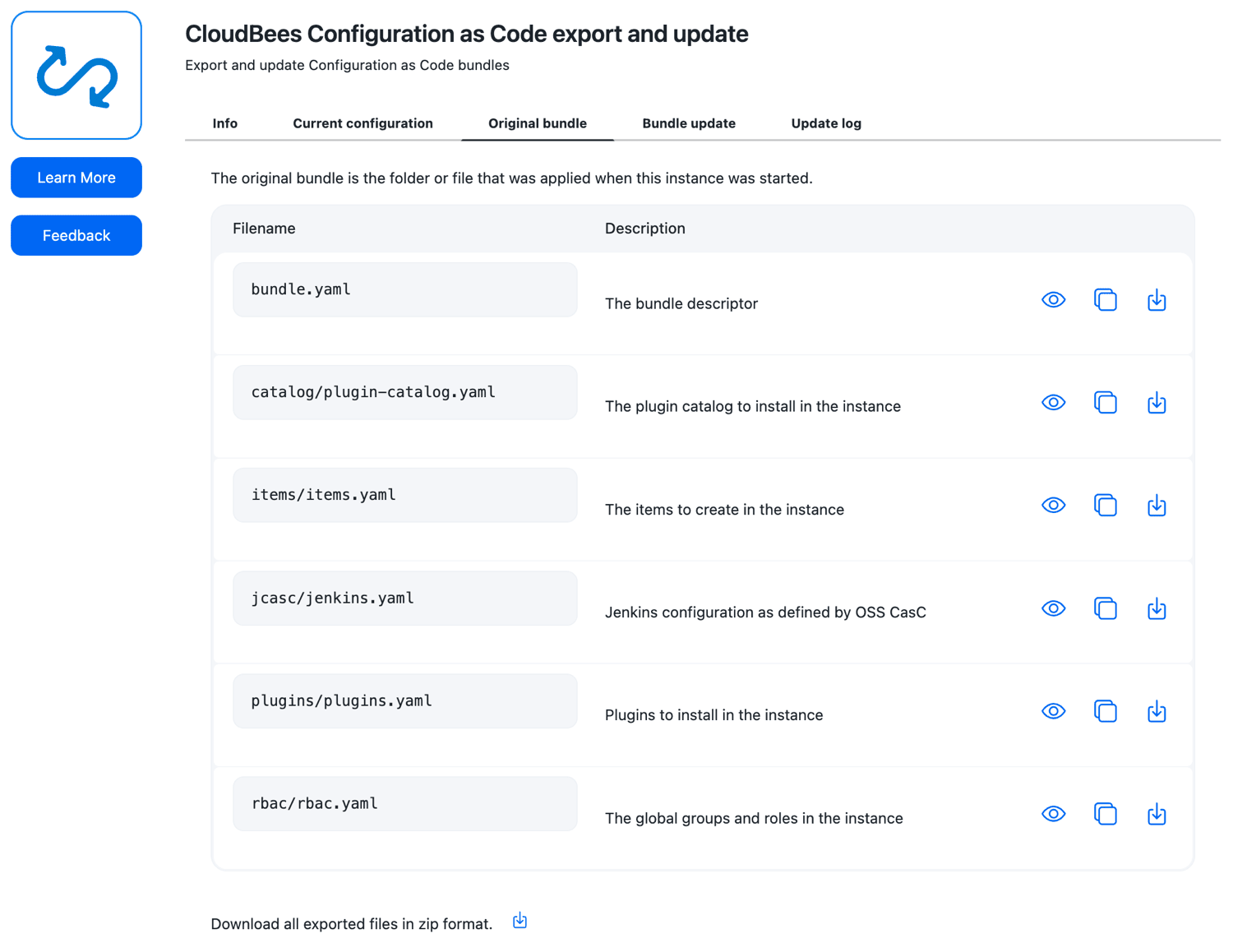

Accessing validation messages on the Configuration as Code export and update screen

Validation messages displayed on the Configuration as Code export and update screen are available in the controller’s log files.

The validation messages displayed depend on whether Quiet mode is set for your CasC configuration. Quiet mode only displays error and warning messages on the Configuration as Code export and update screen. If your CasC configuration is not set to quiet mode, all validation messages (ERROR, INFO, and WARNING) are displayed.

To configure quiet mode:

From the controller dashboard, select Manage Jenkins.
Select System.
On the System Configuration screen, navigate to Configuration as Code validation visualization mode and select Quiet mode.

Quiet mode is disabled by default.

Figure 1. Configure quiet mode
Select Save.

Each bundle validation message includes the type of validation, the total number of validations ran, a general validation code, and a descriptive message.

Bundle validation messages in quiet mode

Figure 2. Bundle validation message (Quiet mode)

Figure 3. Bundle validation messages (with validation messages)

WARNING message
ERROR validation message
INFO validation messages

Accessing validation messages on the CloudBees Configuration as Code bundles screen

When a controller CasC bundle is added to the operations center using the Configuration as Code bundle location and the bundle has structural validation errors or warnings, an administrative monitor is displayed. Select the Configuration as Code bundles link to navigate directly to this screen and view the configuration bundles as shown in the following example. To view the error or warning message for a bundle, select the EDIT button on the right-side of the screen.

Figure 4. Configuration bundle status

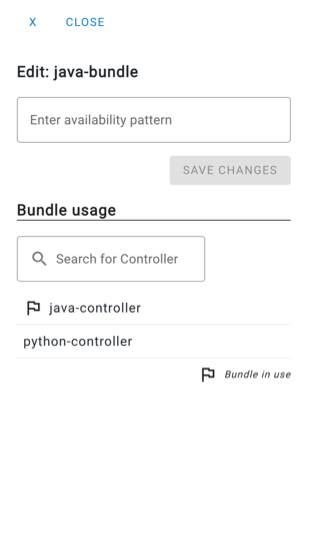

An example of the status display of a valid (green button) CasC bundle is as follows:

Figure 5. Valid CasC bundle

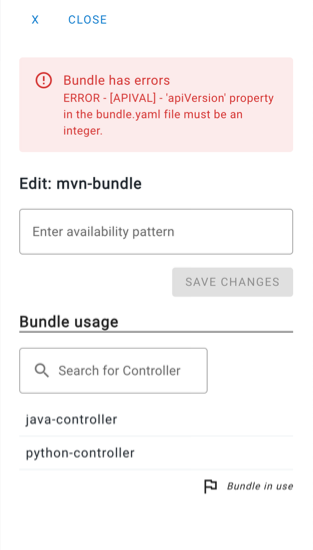

An example of the status display of a CasC bundle with an error (red button) is as follows:

Figure 6. CasC bundle with an error

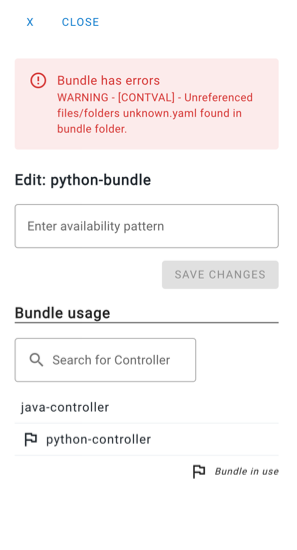

An example of the status display of a CasC bundle with a warning (yellow button) is as follows:

Figure 7. CasC bundle with a warning

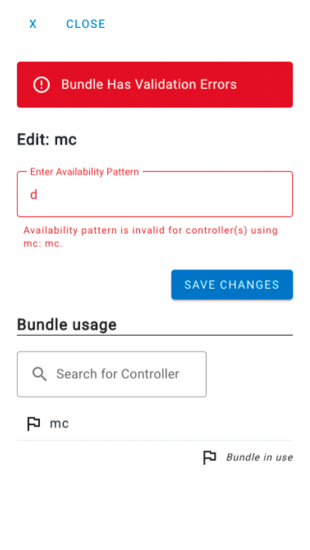

An example of a status display with a validation error message (for example, an error occurs when you update the availability pattern or you add an invalid regexp) is as follows:

Figure 8. CasC bundle with a validation error

You can select the green (valid)/yellow (warning)/red (error) status button next to the bundle name to view, copy, or download the bundle update log, as shown in the following example.

Figure 9. Bundle update log

When the bundle is assigned to the controller and the bundle has controller validation errors or warnings, the following message is displayed in the operations center dashboard: The bundle has errors or warnings. From the operations center dashboard, select the down arrow to the right of your controller’s name, and then select Manage to view the message details. Together with the validation messages for the current version, the previous validation results are displayed in the validation log. The validation log only displays the last five entries. An example of the validation log is as follows:

Figure 10. Validation log

General validation codes

The following general validation codes are included in each CasC bundle validation message.

Table 1. General validation codes
Code	Description
APIVAL	Validates the `apiVersion` field in the `bundle.yaml` file.
CATALOGVAL	Validates the `plugin-catalog.yaml` file in the bundle.
CONTVAL	Validates the content of the `bundle.yaml` file and that the bundle is properly described.
DESCVAL	Validates the `bundle.yaml` file.
EMPTY	Validates that the folder containing the bundle is empty.
FORMATVAL	Validates the format of one file in the bundle.
ITEMS	Validates that items can be created.
JCASC	Validates the Jenkins Configuration-as-Code file(s).
LOADERR	Validates that the bundle can be loaded or downloaded before it is applied to the instance. For example, if the operations center is inaccessible and controllers cannot access CasC bundles, `LOADERR` is returned.
NONEXIST	Validates the existence of the CasC bundle folder or the `bundle.yaml` file.
PLUGINVAL	Validates that the plugins in the `plugins.yaml` file can be installed.
RBAC	Validates the Role-Based Access Control (RBAC) configuration.
SCHEMA	Validates YAML files in the bundle against their schemas.
SEC	Validates that potentially unsecure files are not included in the bundle.
STRUCTURE	Validates the folder containing the bundle in the file system.
UNDEFINED	Undefined validation or unexpected error occurred during a validation. For example, an undefined validation due to legacy code.
VERSIONVAL	Validates the `version` field in the `bundle.yaml` file.

Structural validations

The following validations verify the CasC bundle structure, including the files within the bundle and the content of the bundle.yaml file. The validation is performed when the instance is started and the bundle is applied. If an error is returned, the instance does not start and the validation error is included in the log file.

If you add a controller CasC bundle to the operations center using the Configuration as Code bundle location and a problem occurs, an ERROR message is properly returned, but does not prevent the instance from starting or the bundle from being applied to the controller.

Table 2. Structural validations
Code	Type	Message	Meaning
APIVAL	ERROR	Missing `apiVersion` property in the `bundle.yaml` file.	The `bundle.yaml` must contain the `apiVersion` property.
APIVAL	ERROR	`apiVersion` property in the `bundle.yaml` file must be a positive integer. `apiVersion` property in the `bundle.yaml` file must be an integer.	The `apiVersion` must always be a positive integer, and use a whole number that is greater than zero. `-1` and `a` are examples of invalid values.
CONTVAL	ERROR	Found file-name file specified in the `bundle.yaml` file that is not a folder or a yaml file.	The file is referenced in the `bundle.yaml` file, but it is not a folder or a YAML file, so the entry is invalid.
CONTVAL	WARNING	Not referenced file/folder file-name found in bundle folder.	A file has been detected in the bundle, but it is not directly referenced in the `bundle.yaml` file or the `bundle.yaml` file does not reference a folder that contains the file.
CONTVAL	ERROR	Missing file-name file specified in the `bundle.yaml` file.	The file is referenced in the `bundle.yaml` file, but the file does not exist.
DESCVAL	ERROR	The bundle descriptor is wrong or the `bundle.yaml` file does not exist.	The `bundle.yaml` file cannot be parsed. It is either empty, is not a YAML file, or it does not exist.
DESCVAL	ERROR	Missing `id` property in the `bundle.yaml` file.	The `bundle.yaml` file must contain the `id` property.
EMPTY	ERROR	The CasC bundle folder is empty.	The CasC bundle folder is empty.
NONEXIST	ERROR	The CasC bundle folder does not exist. Impossible to validate.	The folder containing one or more bundles does not exist. This error occurs when the instance is starting and the system property points to a folder that does not exist.
NONEXIST	ERROR	The `bundle.yaml` file is missing.	All bundles should have a `bundle.yaml` file that acts as a bundle descriptor. The `bundle.yaml` file is missing.
PLUGINVAL	WARNING	Plugin plugin-id is not in the CloudBees Assurance Program (CAP) or in applicable plugin catalog(s).	Any plugin in the `plugins.yaml` file should be either in the CAP or referenced in the `plugin-catalog.yaml` file. When this WARNING is raised, you must add the `plugin-id` to the plugin-catalog.yaml` file.
SEC	ERROR	The `bundle.yaml` file refers an entry that is not a folder or a yaml file file.	The `bundle.yaml` file references a file entry that is not a folder or a YAML file.
SCHEMA	ERROR	Example: Errors (2) validating `rbac.yaml`: error 1, error 2	YAML content of that file (`rbac.yaml` in the example) is not valid according to CloudBees CI accepted schema.
STRUCTURE	WARNING	The following files have been detected in the bundle folder but they are not yaml files: list of files.	Files in the bundle folder are not YAML files. Bundles can only contain YAML files and/or folders containing YAML files.
STRUCTURE	ERROR	The CasC bundle is not a folder. Impossible to validate.	This error occurs when the instance is starting and the system property points to a file instead of a folder.
STRUCTURE	ERROR	Impossible to read folder X content in the bundle: error message Impossible to read bundle content: error message	An unexpected error occurred when reading the files and folders. Refer to the error message for details.
STRUCTURE	ERROR	The bundle inherits from parent but the parent folder does not exist. The bundle inherits from a parent bundle, but the parent bundle does not contain a valid `bundle.yaml` file.	The `bundle.yaml` file in the child bundle contains the `parent` property, but the bundle it is referencing does not exist or the parent bundle does not contain a `bundle.yaml` file.
VERSIONVAL	ERROR	Missing `version` property in the `bundle.yaml` file.	The `bundle.yaml` must contain the `version` property.

Controller validations

The following validations verify the controller CasC bundles and are performed remotely on the controllers when:

A bundle is applied to the controller.
The controller is connected to the operations center.
A controller is offline and is then placed online.

Table 3. Controller validations
Code	Type	Message	Meaning
CATALOGVAL	ERROR	error-message	The plugin catalog cannot be installed. See the error-message details.
CATALOGVAL	ERROR	The `plugin-catalog.yaml` file is not a valid yaml/json file.	The `plugin-catalog.yaml` file has an invalid YAML format and you must review it.
CATALOGVAL	WARNING	More than one plugin catalog file used in bundle_id. Using only first read file.	The bundle descriptor (`bundle.yaml` file) refers to more than one plugin catalog file and you cannot specify more than one plugin catalog file. Only the file that is read first is applied and the rest of the files are ignored.
ITEMS	ERROR	The `bundle.yaml` file references list of files item files but they are empty or have an invalid YAML format. Impossible to validate items.	The `bundle.yaml` file refers to files in the `items` section that are empty, cannot be found, or do not have a valid YAML format. You should check these files.
ITEMS	ERROR	The `bundle.yaml` file references list of files RBAC files but they cannot be found. Impossible to validate RBAC configuration for items. The `bundle.yaml` file references list of files RBAC files but they are empty or have an invalid YAML format. Impossible to validate RBAC configuration for items.	The `bundle.yaml` file refers to files in the `rbac` section that are empty, cannot be found, or do not have a valid YAML format. You should check these files or the RBAC configuration because these items cannot be verified.
ITEMS	WARNING	Impossible to parse file-name or missing `removeStrategy` attribute. Please review the file format.	The file is not a YAML file or is missing the `removeStrategy` attribute. You must review the contents of the file.
ITEMS	WARNING	There are unknown attributes in the file-name file: list of unknown attributes.	The file has an invalid format. It should only contain the `removeStrategy`, `root`, and `items` attributes. The unknown attributes must be deleted from the file. For more information, refer to Creating a CasC bundle for controllers.
ITEMS	WARNING	No items in the file-name file. Consider removing it from the CasC bundle.	The file does not contain `items` or the `items.yaml` file is empty. This file reference should be removed from the `bundle.yaml` file.
ITEMS	WARNING	Found items missing the kind in file-name, so it is impossible to create them: list of names.	One or more elements in the `items` list does not have the mandatory `kind` attribute that is used to detect the type of item to create or update. You must add or remove the `kind` attribute.
ITEMS	WARNING	The file-name file cannot be properly parsed: Impossible to parse item name of type kind. Reason: error-message Please check the items format. If any property cannot be parsed, verify that the required plugin is included in the `plugins.yaml` file.	One or more elements in the `items` list cannot be parsed. For each item with the `name` and `kind` properties defined, there is an error message that provides more details. Possible reasons are as follows: One property of the item is misspelled. You must check the file. The instance does not have a required plugin installed, so the symbol cannot be found. You should verify the required plugin is included in the `plugins.yaml` file.
ITEMS	WARNING	The following types of item in file-name cannot be recognized: list of kind. Please check the items and make sure the needed plugin will be installed through the plugin YAML files.	The `kind` of one or more elements in the items list cannot be recognized. The possible reasons are as follows: Misspelling of the `kind`. You should check the file. The instance does not have a plugin, so the symbol cannot be found. You must check the `plugins.yaml` file.
ITEMS	WARNING	The file-name declares a root directory parent. It cannot be found either in the instance or in the files parsed. Please verify that parent is in a YAML file and that the files are correctly ordered.	The file has the `root` attribute pointing to the parent, therefore all items are created within the parent folder. However, the parent cannot be found in the instance or it is not defined in any of the already processed `items.yaml` files. Potential reasons are as follows: The parent item is not defined. You must add a YAML file with that definition. The parent of the item must be defined in a separate YAML file and applied to the instance before it is applied to the file currently being validated. You must check if the `items.yaml` files are declared in the `bundle.yaml` file in the correct order.
ITEMS	WARNING	Item `name` of type `kind` defines the list of roles roles that cannot be found in any RBAC file.	The item is configuring the RBAC roles but they are not in any `rbac.yaml` file. Potential situations are as follows: The roles are defined through an external tool such as LDAP. You did not include the RBAC configuration in the bundle and you must check the `bundles.yaml` and all `rbac.yaml` files.
JCASC	ERROR	The `bundle.yaml` file references file in the Jenkins Configuration as Code section that cannot be found. Impossible to validate the Jenkins configuration. The `bundle.yaml` file references file in the Jenkins Configuration as Code section that is empty or has an invalid YAML format. Impossible to validate the Jenkins configuration.	The `bundle.yaml` file references file in the Jenkins Configuration as Code section that are either empty, cannot be found, or have an invalid YAML format. You must check the `jenkins.yaml` file.
JCASC	ERROR	It is impossible to validate the Jenkins configuration. Please review your Jenkins and plugin configurations. Reason: error-message	The configuration is invalid and cannot be validated. There may be a misspelling in a symbol or the symbol cannot be configured because a required plugin is not installed. You must verify the plugins in the `plugin.yaml` file.
JCASC	WARNING	Invalid Jenkins configuration: error-message	The required plugin is installed in the instance, but it cannot be properly configured. The potential reasons are as follows: There is a change in the Jenkins version and the instance must be updated or the configuration file must be downgraded. The plugin must be updated. There is a misspelling in a symbol property.
RBAC	ERROR	`RoleMatrixAuthorizationStrategy` is not the current authorization strategy or the bundle did not configure it and it is required.	The authorization strategy is not the role-based matrix authorization strategy. This is due to the following: The `authorizationStrategy` attribute is not configured in the `jenkins.yaml` file. The `authorizationStrategy` attribute is not configured in the `jenkins.yaml` file and the current authorization strategy configured in the UI is not supported by RBAC. In both cases, the role-based matrix authorization strategy must be added to the `jenkins.yaml` file to use CloudBees RBAC with CasC. For example, you must add the following to the `jenkins.yaml` file: authorizationStrategy: "cloudBeesRoleBasedAccessControl"
RBAC	ERROR	The bundle configures RBAC but the authorization strategy that will be configured is not `RoleMatrixAuthorizationStrategy` ("CloudBeesRoleBasedAccessControl" in the `jcasc` section). If you set the authorization strategy in the bundle, please make sure the files are correctly ordered.	The `bundle.yaml` file refers to several files in the Jenkins Configuration as Code section. Ensure that there is only a single configuration for the authorization strategy.
RBAC	ERROR	The `bundle.yaml` file refers the {list-of-file-names} JCasC files but they cannot be found. Impossible to validate the needed configuration for RBAC. The `bundle.yaml` file refers the {list-of-file-names} JCasC files but they are empty or have an invalid YAML format. Impossible to validate the needed configuration for RBAC.	The `bundle.yaml` file refers to files in the Jenkins Configuration as Code section that cannot be found, are empty, or do not have a valid YAML format. You must check the files or the RBAC configuration cannot be checked.
RBAC	ERROR	The `bundle.yaml` file refers the {list-of-file-names} RBAC files but they cannot be found. Impossible to validate RBAC configuration. The `bundle.yaml` file refers to the {list-of-file-names} RBAC files but they are empty or have an invalid YAML format. Impossible to validate RBAC configuration.	The `bundle.yaml` file refers to files in the RBAC section that cannot be found, are empty, or do not have a valid YAML format. You must check the files.
RBAC	ERROR	Impossible to parse file-name. Please review the file format: reason	The file has an incorrect syntax or format and it must be reviewed and updated. reason gives details about the error. The possible reasons are as follows: The `removeStrategy` property is not included in the file. There are unknown attributes in the `rbac.yaml` file, followed by the list of unknown attributes. Incorrect syntax
RBAC	ERROR	The following permissions in file-name cannot be recognized: list-of-permissions. Please check the permissions and make sure the needed plugin will be installed through the plugin yaml files.	RBAC needs the permissions configured in the `rbac.yaml` file to be available to the controller, but the permissions cannot be detected. The possible reasons are as follows: The plugin where the permissions are included is not in the `plugins.yaml` file. There is a misspelling in the permissions.
RBAC	WARNING	The bundle configures RBAC but the authorization strategy is not configured as `RoleMatrixAuthorizationStrategy` in the `jcasc` section. `RoleMatrixAuthorizationStrategy` is the current authorization strategy, but if this changes, the bundle will become erroneous. It is strongly recommended that you configure the authorization strategy as part of the bundle.	RBAC is currently configured in the Manage Jenkins Configure Global Security page to use the Role-Based Matrix Authorization Strategy and it is not configured in the `jenkins.yaml` file. If the UI configuration is changed, the CasC bundle will no longer be valid. CloudBees recommends that you override the UI setting by configuring the authorization strategy in the 'jenkins.yaml` file. For example, add the following to the `jenkins.yaml` file: authorizationStrategy: "cloudBeesRoleBasedAccessControl"
RBAC	WARNING	No RBAC configuration in the file-name file. Consider removing it from the CasC bundle.	The file does not have roles or groups defined. Remove this file from the CasC bundle.

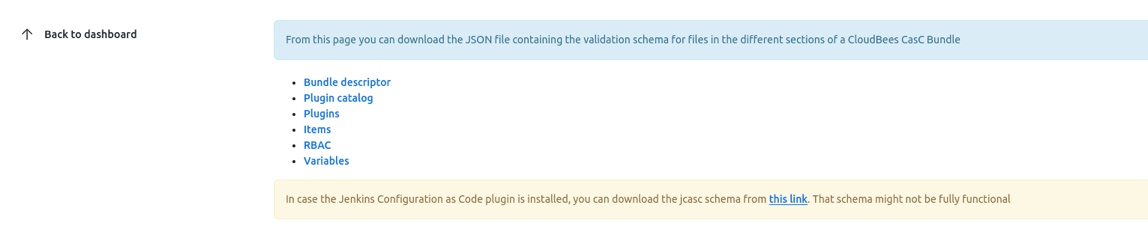

JSON schema validations

The following are JSON schema based validations for YAML files.

JSON schema for items.yaml

{
  "$schema": "http://json-schema.org/draft-07/schema#",
  "$ref": "#/definitions/items",
  "definitions": {
    "items": {
      "title": "items",
      "type": "object",
      "additionalProperties": false,
      "patternProperties": {
        "^x-.*$": {
          "$comment": "We allow extra properties starting with x- to allow anchors usage",
          "type": "object"
        }
      },
      "required": ["items"],
      "properties": {
        "removeStrategy": {
          "$ref": "#/definitions/removeStrategy",
          "description": "Not required, as it can also be defined in bundle.yaml"
        },
        "items": {
          "$ref": "#/definitions/items-array"
        },
        "root": {
          "type": "string"
        }
      }
    },
    "items-array": {
      "type": "array",
      "minItems": 1,
      "items": {
        "$ref" : "#/definitions/item"
      }
    },
    "removeStrategy": {
      "title": "removeStrategy",
      "type": "object",
      "additionalProperties": false,
      "required": ["items", "rbac"],
      "properties": {
        "items": {
          "enum": [ "NONE", "none",
                    "SYNC", "sync",
                    "REMOVE_SUPPORTED", "remove_supported", "REMOVE-SUPPORTED", "remove-supported",
                    "REMOVE_ALL", "remove_all", "REMOVE-ALL", "remove-all"]
        },
        "rbac": {
          "enum": ["SYNC", "sync", "UPDATE", "update"]
        }
      }
    },
    "item": {
      "title": "item",
      "type": "object",
      "additionalProperties": true,
      "required": ["kind", "name"],
      "properties": {
        "kind": {
          "type": "string"
        },
        "name": {
          "type": "string"
        },
        "items": {
          "$ref": "#/definitions/items-array"
        },
        "groups": {
          "type": "array",
          "items": {
            "$ref": "#/definitions/group"
          }
        },
        "filteredRoles": {
          "type": "array",
          "items": {
            "type": "string"
          },
          "minItems": 1
        }
      }
    },
    "group": {
      "title": "groups",
      "type": "object",
      "additionalProperties": false,
      "required": ["name"],
      "properties": {
        "name": {
          "type": "string"
        },
        "members": {
          "$ref": "#/definitions/groupMembers"
        },
        "roles": {
          "$ref": "#/definitions/groupRoles"
        }
      }
    },
    "groupMembers": {
      "title": "Members in group",
      "type": "object",
      "properties": {
        "users": {
          "type": "array",
          "items": {
            "type": "string"
          }
        },
        "external_groups": {
          "type": "array",
          "items": {
            "type": "string"
          }
        },
        "internal_groups": {
          "type": "array",
          "items": {
            "type": "string"
          }
        }
      }
    },
    "groupRoles": {
      "title": "Roles in group",
      "type": "array",
      "items": {
        "$ref": "#/definitions/groupRole"
      }
    },
    "groupRole": {
      "type": "object",
      "title": "Role in group",
      "additionalProperties": false,
      "required": ["name"],
      "properties": {
        "name": {
          "type": "string"
        },
        "grantedAt": {
          "type": "string"
        },
        "propagates": {
          "anyOf": [
            { "enum": ["true", "TRUE", "false", "FALSE"] },
            { "type":  "boolean"}
          ]
        }
      }
    }
  }
}▼

JSON schema for plugin-catalog.yaml

{
  "$schema": "http://json-schema.org/draft-07/schema#",
  "$ref": "#/definitions/plugin-catalog",
  "definitions": {
    "plugin-catalog": {
      "title": "plugin catalog",
      "type": "object",
      "additionalProperties": false,
      "patternProperties": {
        "^x-.*$": {
          "$comment": "We allow extra properties starting with x- to allow anchors usage",
          "type": "object"
        }
      },
      "required": ["type", "version", "name", "configurations"],
      "properties": {
        "type": {
          "enum": ["plugin-catalog"]
        },
        "version": {
            "enum": ["1"]
        },
        "name": {
          "type": "string",
          "pattern": "^[^\\s]*$"
        },
        "displayName":{
          "type": "string"
        },
        "configurations": {
          "type": "array",
          "minItems": 1,
          "items": {
            "$ref": "#/definitions/configuration"
          }
        },
        "settings": {
          "$ref": "#/definitions/settings"
        }
      }
    },
    "configuration": {
      "type": "object",
      "additionalProperties": false,
      "properties": {
        "description": {
          "type": "string"
        },
        "prerequisites": {
          "$ref": "#/definitions/prerequisite"
        },
        "includePlugins": {
          "$ref": "#/definitions/includePlugin"
        },
        "beekeeperExceptions": {
          "$ref": "#/definitions/beekeeperException"
        }
      }
    },
    "prerequisite": {
      "type": "object",
      "required": ["productVersion"],
      "additionalProperties": false,
      "properties": {
        "productVersion": {
          "type": "string"
        }
      }
    },
    "includePlugin": {
      "type": "object",
      "additionalProperties": false,
      "patternProperties": {
        "^.*$": {
          "$ref": "#/definitions/pluginDefinition"
        }
      }
    },
    "beekeeperException": {
      "type": "object",
      "additionalProperties": false,
      "patternProperties": {
        "^.*$": {
          "$ref": "#/definitions/pluginDefinition"
        }
      }
    },
    "pluginDefinition": {
      "type": "object",
      "additionalProperties": false,
      "properties": {
        "version": {
          "anyOf": [
            { "type": "string" },
            { "type": "number" }
          ]
        },
        "url": {
          "type": "string",
          "format": "uri",
          "pattern": "https?://.*"
        },
        "sha1": {
          "type": "string"
        },
        "sha256": {
          "type": "string"
        }
      },
      "oneOf": [
        { "required": ["version"] },
        { "required": ["url"] }
      ]
    },
    "settings": {
      "type": "object",
      "additionalProperties": false,
      "properties": {
        "httpCredentialsProvider": {
          "$ref": "#/definitions/httpCredentialsProvider"
        },
        "repository": {
          "$ref": "#/definitions/repository"
        }
      },
      "anyOf": [
        { "required": ["httpCredentialsProvider"] },
        { "required": ["repository"] }
      ]
    },
    "httpCredentialsProvider": {
      "type": "object",
      "additionalProperties": false,
      "properties": {
        "credentials": {
          "$ref": "#/definitions/httpCredentialsProvider-credentials"
        }
      },
      "required": ["credentials"]
    },
    "httpCredentialsProvider-credentials": {
      "type": "object",
      "additionalProperties": false,
      "properties": {
        "authenticationScope": {
          "type": "string"
        },
        "id": {
          "type": "string"
        }
      },
      "required": ["authenticationScope", "id"]
    },
    "repository": {
      "type": "object",
      "additionalProperties": false,
      "properties": {
        "layout": {
          "type": "string"
        },
        "url": {
          "type": "string",
          "format": "uri",
          "pattern": "https?://.*"
        }
      },
      "required": ["url"]
    }
  }
}▼

JSON schema for plugins.yaml

{
  "$schema": "http://json-schema.org/draft-07/schema#",
  "$ref": "#/definitions/plugins",
  "definitions": {
    "plugins": {
      "title": "plugins",
      "type": "object",
      "additionalProperties": false,
      "patternProperties": {
        "^x-.*$": {
          "$comment": "We allow extra properties starting with x- to allow anchors usage",
          "type": "object"
        }
      },
      "required": ["plugins"],
      "properties": {
        "plugins": {
          "type": "array",
          "minItems": 1,
          "items": {
            "$ref": "#/definitions/plugin"
          }
        }
      }
    },
    "plugin": {
      "title": "plugin declaration",
      "type": "object",
      "additionalProperties": false,
      "properties": {
        "id": {
          "type": "string"
        }
      },
      "required": ["id"]
    }
  }
}▼

JSON schema for rbac.yaml

{
  "$schema": "http://json-schema.org/draft-07/schema#",
  "$ref": "#/definitions/rbac",
  "definitions": {
    "rbac": {
      "title": "rbac",
      "type": "object",
      "additionalProperties": false,
      "patternProperties": {
        "^x-.*$": {
          "$comment": "We allow extra properties starting with x- to allow anchors usage",
          "type": "object"
        }
      },
      "anyOf": [
        { "required": ["groups"] },
        { "required": ["roles"] }
      ],
      "properties": {
        "removeStrategy": {
          "$ref": "#/definitions/removeStrategy",
          "description": "Not required, as it can also be defined in bundle.yaml"
        },
        "groups": {
          "type": "array",
          "items": {
            "$ref": "#/definitions/group"
          }
        },
        "roles": {
          "type": "array",
          "items": {
            "$ref": "#/definitions/role"
          }
        }
      }
    },
    "removeStrategy": {
      "title": "removeStrategy",
      "type": "object",
      "additionalProperties": false,
      "required": [
        "rbac"
      ],
      "properties": {
        "rbac": {
          "enum": ["SYNC", "sync", "UPDATE", "update"]
        }
      }
    },
    "group": {
      "title": "groups",
      "type": "object",
      "additionalProperties": false,
      "required": ["name"],
      "properties": {
        "name": {
          "type": "string"
        },
        "members": {
          "$ref": "#/definitions/groupMembers"
        },
        "roles": {
          "$ref": "#/definitions/groupRoles"
        }
      }
    },
    "groupMembers": {
      "title": "Members in group",
      "type": "object",
      "properties": {
        "users": {
          "type": "array",
          "items": {
            "type": "string"
          }
        },
        "external_groups": {
          "type": "array",
          "items": {
            "type": "string"
          }
        },
        "internal_groups": {
          "type": "array",
          "items": {
            "type": "string"
          }
        }
      }
    },
    "groupRoles": {
      "title": "Roles in group",
      "type": "array",
      "items": {
        "$ref": "#/definitions/groupRole"
      }
    },
    "groupRole": {
      "type": "object",
      "title": "Role in group",
      "additionalProperties": false,
      "required": ["name"],
      "properties": {
        "name": {
          "type": "string"
        },
        "grantedAt": {
          "type": "string"
        },
        "propagates": {
          "anyOf": [
            { "enum": ["true", "TRUE", "false", "FALSE"] },
            { "type":  "boolean"}
          ]
        }
      }
    },
    "role": {
      "type": "object",
      "title": "Role",
      "additionalProperties": false,
      "required": ["name"],
      "properties": {
        "name": {
          "type": "string"
        },
        "permissions": {
          "type": "array",
          "items": {
            "type": "string"
          }
        },
        "filterable": {
          "anyOf": [
            { "enum": ["true", "TRUE", "false", "FALSE"] },
            { "type":  "boolean"}
          ]
        }
      }
    }
  }
}▼

JSON schema for variables.yaml

{
  "$schema": "http://json-schema.org/draft-07/schema#",
  "$ref": "#/definitions/variables",
  "definitions": {
    "variables": {
      "title": "variables",
      "type": "object",
      "additionalProperties": false,
      "patternProperties": {
        "^x-.*$": {
          "$comment": "We allow extra properties starting with x- to allow anchors usage",
          "type": "object"
        }
      },
      "required": ["variables"],
      "properties": {
        "variables": {
          "type": "array",
          "minItems": 1,
          "items": {
            "type": "object"
          }
        }
      }
    }
  }
}▼

Download JSON bundle schemas

Download JSON files containing validation schema used during bundle validation. By downloading these files, you can verify that your CasC bundles are structurally correct.

You can also download these files through API endpoints. Refer to Configuration as Code (CasC) HTTP API for more information.

To download JSON files with validation schema:

Navigate to the operations center dashboard.
In the web address bar, enter manage/core-casc-schema-download at the end of the URL. Your URL should look something like:

https://sample.beescloud.com/cjoc/manage/core-casc-schema-download

A new page displays with a list of JSON files available for download.

Figure 11. Download JSON schema
Select the desired link to download the JSON file.

Exporting the original CasC bundle

You can export the original CasC bundle and compare it to the current configuration to determine if recent changes may have been incorrectly applied.

Sign in as a user with the Administer permission.
Select Manage Jenkins in the left pane.

Figure 12. CloudBees Configuration as Code export and update
Select CloudBees Configuration as Code export and update.
Select Original bundle.

Figure 13. Original bundle
Select Download to export the original bundle. You can export individual YAML files or export all files in zip format.
Select Current configuration.

Figure 14. Current configuration
Select Download to export the current configuration. You can export individual YAML files or export all files in zip format.
Compare the original bundle to the current configuration to determine if recent changes may have been incorrectly applied.

Validating the bundle deployment in operations center

You can check that the configuration bundle is properly deployed to the operations center server using an HTTP client tool such as cURL. Use the tool to fetch the bundle.yaml using the URL you entered into the casc-bundle-link.yml file. To authenticate the request, you will also need to provide the token value from the casc-bundle-link.yml file as an HTTP header named X-CasC-Token.

Example request with authentication token

curl -v -H "X-CasC-Token: abc123de-f456-7891-gh23-i4jkl45m6n7o" \
http://oc1.example.org:8180/config-bundle/bundle-1▼

This request should return the bundle.yaml file from the configuration bundle in the directory named bundle-1.

If the bundle.yaml file is not returned and you received the following error: No response/connection refused/timeout.

Check that the operations center server is running.
Check that the hostname matches the Operation Center’s.
Check that the port in the URL matches the operations center’s port.
Check whether a firewall between the client and the Operation’s Center could be blocking the connection.

If the bundle.yaml file is not returned and you received the following error: Wrong bundle returned. Check that the bundle files were placed into the correct directory on the operations center server.

If the bundle.yaml file is not returned and you received the following error: HTTP status code 404/Not Found returned.

This can happen when either the URL path was incorrect, or the token was not found.

Check that the URL matches the format specified above, and that the final part matches the name of the directory containing the configuration bundle.
Check that the token value provided matches the one for this bundle in the bundles list in operations center under Manage Jenkins > Configuration as Code Bundles.

Delaying Configuration as Code configuration for Jenkins to load global configuration

Jenkins 2.199 introduced a check to prevent saving global configurations before they are loaded. Configuration as Code needs to apply global configurations before Jenkins loads jobs to correctly reference any global state. Therefore, until JENKINS-51856 is implemented, there is a race condition where Jenkins may fail to start when used with the Configuration as Code plugin.

If you encounter the race condition, Jenkins will fail to start with an exception message similar to the following:

SEVERE	jenkins.InitReactorRunner$1#onTaskFailed: Failed ConfigurationAsCode.init
java.lang.IllegalStateException: An attempt to save the global configuration was made before it was loaded▼

The workaround for this race condition is to delay Configuration as Code configuration to give Jenkins time to load the global configuration.

To enable this delay, set the io.jenkins.plugins.casc.ConfigurationAsCode.initialDelay system property to the amount of delay time in milliseconds. This delay time value will be dependent on aspects of your system (cpu/disk) and configuration.

To find a value that will work with your system, start with 5000 (5 seconds) and increment by 2000 (2 seconds) until the issue is corrected, then add 1000 (1 second) to the final value for extra safety.

Enabling CasC configuration delay on a managed controller/team controller

In the case of a managed controller or team controller, the workaround can be applied as a system property on the configuration page of the controller item in the operations center dashboard as illustrated below:

Managed controllers configuration screen

Figure 15. Managed controller configuration screen

Enabling CasC configuration delay on a client controller

Applying the workaround system property to a client controller depends on the client controller installation method.

In the same way other system properties have been added to the init script, set the -Dio.jenkins.plugins.casc.ConfigurationAsCode.initialDelay system property to the amount of delay time in milliseconds.

Support bundles for CasC

When generating a support bundle, you can include the CasC bundle update log within the support bundle. For more information, see Generating a support bundle.
