CloudBees HashiCorp Vault Plugin

HashiCorp Vault is a secrets management system where users or vault clients can manage their sensitive details (for example, passwords, keys, certificates, and access tokens) via Secret Engines.

The CloudBees HashiCorp Vault plugin enables a credential store for CloudBees CI. Credentials are stored in a remote HashiCorp Vault instance and secrets are accessed on demand. With this plugin, you can manage credentials in a centralized location for all of your controllers.

The CloudBees Assurance Program (CAP) now includes the OpenID Connect (OIDC) Provider plugin (oidc-provider) for the HashiCorp Vault plugin. This plugin allows the operations center and the controllers to act as an OIDC provider, but it must only be used with CloudBees CI. Use of this plugin with other third-party tools is not supported.

Prerequisites

The CloudBees HashiCorp Vault Plugin requires the following:

CloudBees CI on modern cloud platforms or CloudBees CI on traditional platforms 2.387.2.3 (or newer)
HashiCorp Vault v1.8.0 (or newer)
Controller access to the HashiCorp Vault instance

Credentials retrieval process

The following diagram illustrates the credential retrieval process.

Figure 1. HashiCorp Vault Credential Retrieval Process

Install the HashiCorp Vault plugin

There are two options to install the HashiCorp Vault plugin:

Configure authentications for the HashiCorp Vault credential provider

The HashiCorp Vault credentials provider must be configured before you can use the HashiCorp Vault as a secret storage for your CloudBees CI instance. Once the provider is configured, it enables a new store (HashiCorp Vault) on the Credentials page. This new store is scoped to Jenkins. You can configure authentications (HashiCorp Vault auth methods) at the global and folder level.

Configure HashiCorp Vault credential provider at the global level

Only administrators can configure authentications for the HashiCorp Vault credential provider at the global level.

To configure a global HashiCorp Vault Credentials provider:

From the Dashboard, select Manage Jenkins on the left navigation pane.
Under Security, select Credential Providers and navigate to HashiCorp Vault Credential Provider.

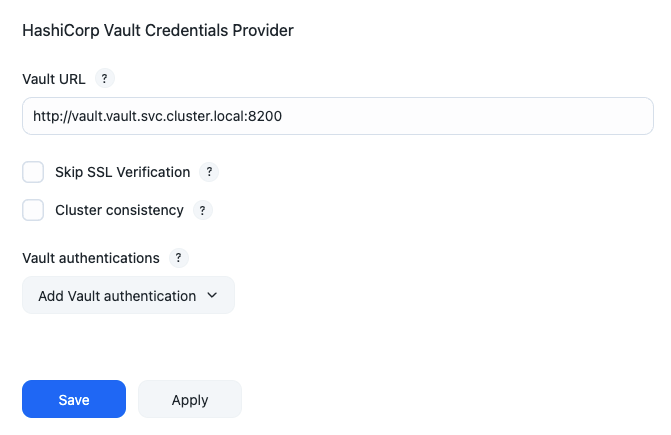

Figure 2. HashiCorp Vault Credential Provider
In the Vault URL field, enter the URL of the HashiCorp Vault server. The URL can begin with http or https.
Select Skip SSL Verification to skip SSL certificate verification. This option is left blank by default.

CloudBees recommends leaving this option blank. Leaving this option blank ensures each SSL connection to the Vault instance is secure by verifying the server’s SSL certificate.
Select Add vault authentication AppRole. Vault authentication is required to connect to the HashiCorp Vault server. The only supported authentication method is AppRole.

Under AppRole, you can configure multiple HashiCorp Vault namespaces. Complete the following fields:

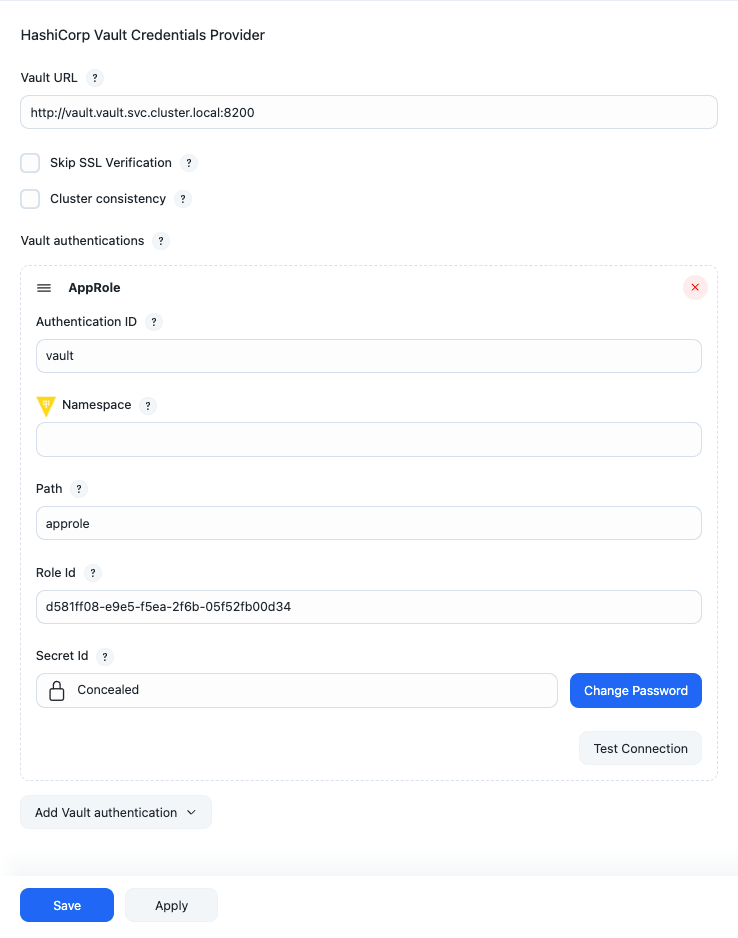

Figure 3. Add vault authentication

View HashiCorp Vault Credential Provider details

Label Description

Label	Description
Authentication ID	The ID by which the authentication is identified from credentials.
Namespace	The HashiCorp Vault namespace where secrets are stored. Leave this field blank if namespaces are not enabled or the secret is part of the root namespace.
Role Id	A unique identifier associated with the AppRole. To get the RoleID, refer to Get RoleID.
Secret Id	A unique identifier that authenticates and access secrets within the Vault. To get the SecretID, refer to SecretID. By default, the SecretID generated by the HashiCorp Vault instance has a TTL (time-to-live) attribute or a `num_uses` attribute. Once those limitations are reached, the HashiCorp Vault credentials provider cannot retrieve secrets. CloudBees recommends configuring the AppRole with `secret_id_num_uses = 0` and `secret_id_ttl = 0`.

Authentication ID

The ID by which the authentication is identified from credentials.

Namespace

The HashiCorp Vault namespace where secrets are stored. Leave this field blank if namespaces are not enabled or the secret is part of the root namespace.

Role Id

A unique identifier associated with the AppRole. To get the RoleID, refer to Get RoleID.

Secret Id

A unique identifier that authenticates and access secrets within the Vault. To get the SecretID, refer to SecretID.

By default, the SecretID generated by the HashiCorp Vault instance has a TTL (time-to-live) attribute or a num_uses attribute. Once those limitations are reached, the HashiCorp Vault credentials provider cannot retrieve secrets. CloudBees recommends configuring the AppRole with secret_id_num_uses = 0 and secret_id_ttl = 0.

Repeat steps 5-6 to create additional vault authentications and namespaces.
Select Test connection to validate the HashiCorp Vault connection details.
- If CloudBees CI connects to the configured HashiCorp Vault instance, a Connected message displays.
- If the connection fails, you can troubleshoot using the information contained in these error messages:
  - An error occurred while contacting Vault: invalid secret ID
  - An error occurred while contacting Vault: invalid role ID
  - An error occurred while contacting Vault: permission denied connect timed out
  - {url} nodename nor servname provided, or not known

Select Save.

Creating vault authentications at the global level, makes the credential accessible to users with the Credentials permission. Those users can then add and edit the HashiCorp Vault credentials to their folders and jobs.

Configure HashiCorp Vault credential provider authentications at folder-level

Only users with the HashiCorp Vault Configuration permission can configure authentications for the HashiCorp Vault provider at the folder level.

To configure Authentications for the HashiCorp Vault credential provider at folder-level:

On the Dashboard, select the desired folder.
On the left navigation pane, select Configure. The folder configuration page displays.
Navigate to Vault Authentications Folder Property.
Select Add vault authentication AppRole. Vault authentication is required to connect to the HashiCorp Vault server. The only supported authentication method is AppRole.

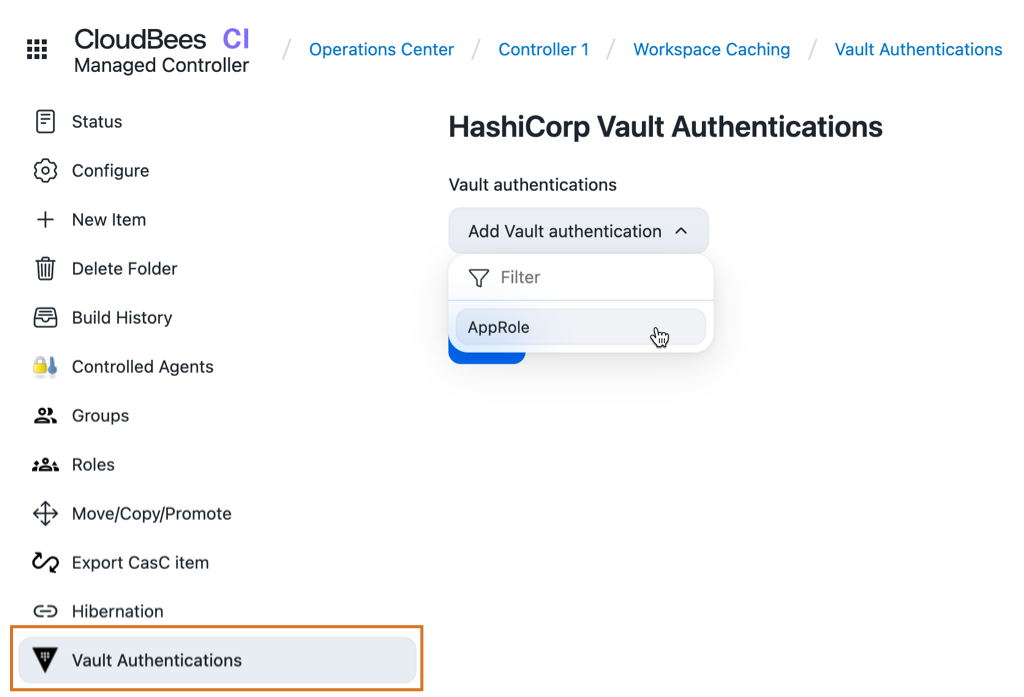

Figure 4. Vault Authentications Folder Property

Under AppRole, you can configure multiple HashiCorp Vault namespaces. Complete the following fields:

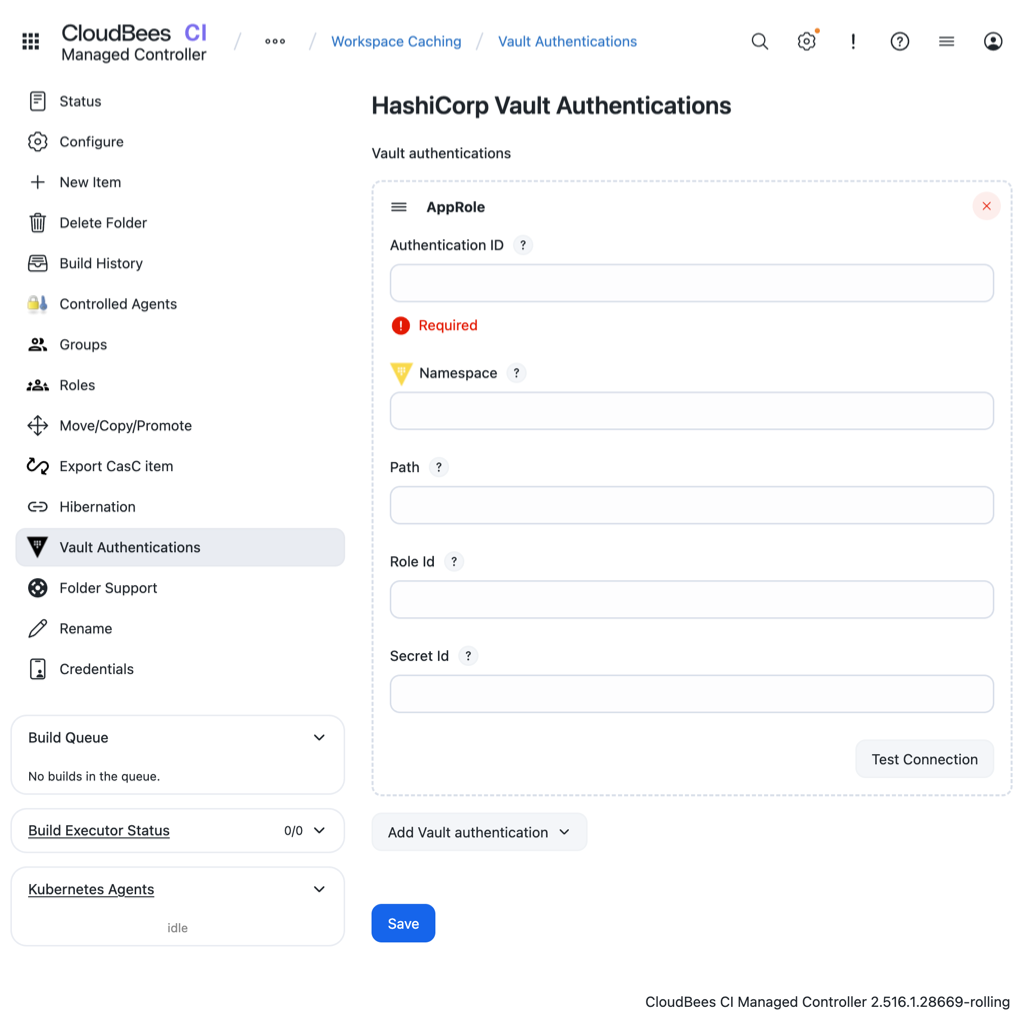

Figure 5. Add folder vault authentication

View HashiCorp Vault Credential Provider details

Label Description

Label	Description
Authentication ID	The ID by which the authentication is identified from credentials.
Namespace	The HashiCorp Vault namespace where secrets are stored. Leave this field blank if namespaces are not enabled or the secret is part of the root namespace.
Role Id	A unique identifier associated with the AppRole. To get the RoleID, refer to Get RoleID.
Secret Id	A unique identifier that authenticates and access secrets within the Vault. To get the SecretID, refer to SecretID. By default, the SecretID generated by the HashiCorp Vault instance has a TTL (time-to-live) attribute or a `num_uses` attribute. Once those limitations are reached, the HashiCorp Vault credentials provider cannot retrieve secrets. CloudBees recommends configuring the AppRole with `secret_id_num_uses = 0` and `secret_id_ttl = 0`.

Authentication ID

The ID by which the authentication is identified from credentials.

Namespace

The HashiCorp Vault namespace where secrets are stored. Leave this field blank if namespaces are not enabled or the secret is part of the root namespace.

Role Id

A unique identifier associated with the AppRole. To get the RoleID, refer to Get RoleID.

Secret Id

A unique identifier that authenticates and access secrets within the Vault. To get the SecretID, refer to SecretID.

Repeat steps 4-5 to create additional vault authentications and namespaces.
Select Test connection to validate the HashiCorp Vault connection details.
- If CloudBees CI connects to the configured HashiCorp Vault instance, a Connected message displays.
- If the connection fails, you can troubleshoot using the information contained in these error messages:
  - An error occurred while contacting Vault: invalid secret ID
  - An error occurred while contacting Vault: invalid role ID
  - An error occurred while contacting Vault: permission denied connect timed out
  - {url} nodename nor servname provided, or not known
Select Save.

Configure HashiCorp Vault credentials

Once the HashiCorp Vault credential provider is created at either the global or folder level, a new Vault credential store is visible on the Credentials page.

Figure 6. HashiCorp Vault credential store at the global level

Figure 7. HashiCorp Vault credential store at the folder level

After configuring the HashiCorp Vault provider, you can create two new types of credentials: Vault Username Password and Vault Secret Text. HashiCorp Vault credentials only read actual secrets from the HashiCorp Vault instance and are not used to delete, update, or create secrets.

If the HashiCorp Vault credentials need to be restricted, install the Restricted Credentials plugin.

To configure a HashiCorp Vault credential:

Open the Credentials page.
1. For the global-level credential: From the Dashboard, select Manage Jenkins Credentials.
2. For the folder-level credential: From the Dashboard, locate a folder and select <Folder Name> Credentials.
Open the New Credentials screen to add new credentials.
1. For the global-level crendential provider, navigate to Stores scoped to Jenkins and hover your cursor over the (global) domain and select Add credentials.
2. For the folder-level credential, navigate to Stores scoped to [Folder Name] and hover your cursor over the (global) domain and select Add credentials.

  Figure 8. Add credentials
Select the type of credential in the Kind field and configure the Vault Secret Engine settings.

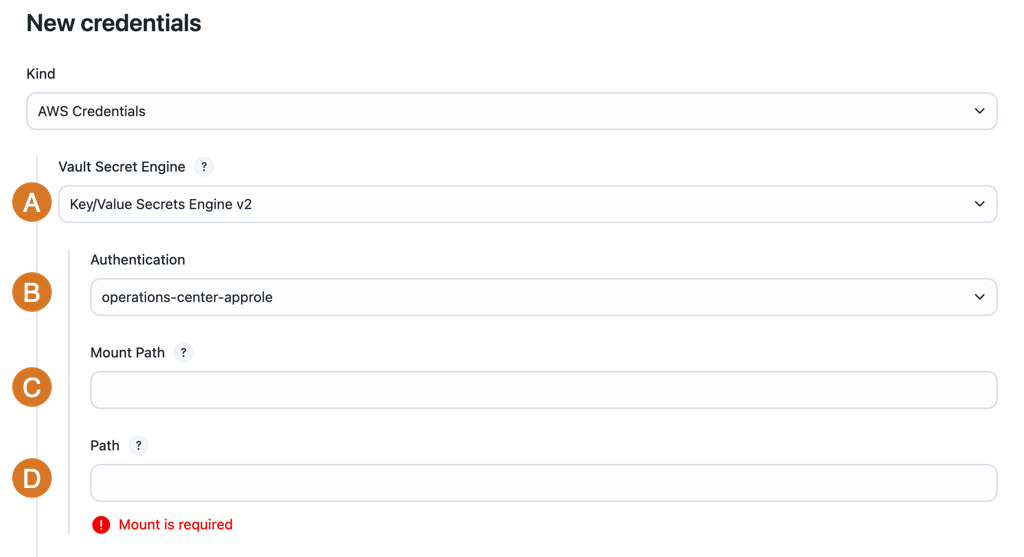

Figure 9. New credentials page
1. Vault Secret Engine: Select the appropriate type of Vault Secret Engine where secrets are stored.
  - Key/Value Secret Engine v2 is a Versioned Key/Value secret engine.
  - Key/Value Secret Engine v1 is a Static Secrets: Key/Value secret engine.
2. Authentication: Select the HashiCorp Vault authentication defined in Configure authentications for the HashiCorp Vault credential provider.
3. Mount Path: Enter the mount path where the Vault secret is stored. Type the mount path as {mount}/path/to/secret. This is a required field.
4. Path: Enter the path where the HashiCorp Vault secret is stored. Type the path as mount/{path/to/secret}. This is a required field.

  The Vault Secret Engine validates whether the path for the HashiCorp Vault secret is correct. If the path is correct, a Path was found message displays. If CloudBees CI cannot retrieve secrets from the provided path, you may receive one of the following error messages:
  - An error occurred while contacting Vault: the requested Vault resource was not found: This message displays if the Path or Mount Path is incorrect.
  - An error occurred while contacting Vault: 1 error occurred: *permission denied. This message displays if the AppRole does not have permissions (via HashiCorp Vault) to access the path.

Based on the credential selected in the Kind field, complete the following fields:

View AWS Credentials details

Label	Description
ID	Enter the credential ID. If this field is left blank, the ID is automatically generated.
Description	Enter a description of the credential. This is an optional field.
Access Key ID Vault key	Enter the key to look up in HashiCorp Vault that is also used to retrieve the access key ID. It may be left blank in case you are selecting an IAM role.
Secret Access Key Vault key	Enter the key to look up in the HashiCorp Vault that is also used to retrieve the secret access key. It can be left blank if you select an IAM role.
IAM Role Support » Role ARN Vault Key	Enter the key to look up in the HashiCorp Vault that is also used to retrieve the role’s ARN.
IAM Role Support » External Id Vault Key	Enter the key to look up in the HashiCorp Vault that is also used to retrieve the external ID.
IAM Role Support » MFA Serial Number Vault Key	Enter the key to look up in the HashiCorp Vault that is also used to retrieve the MFA serial number.
IAM Role Support » STS Token Durantion	Enter the duration of time (in seconds), for which the obtained session token will be valid.

Label

Description

Enter the credential ID. If this field is left blank, the ID is automatically generated.

Description

Enter a description of the credential. This is an optional field.

Access Key ID Vault key

Enter the key to look up in HashiCorp Vault that is also used to retrieve the access key ID. It may be left blank in case you are selecting an IAM role.

Secret Access Key Vault key

Enter the key to look up in the HashiCorp Vault that is also used to retrieve the secret access key. It can be left blank if you select an IAM role.

IAM Role Support » Role ARN Vault Key

Enter the key to look up in the HashiCorp Vault that is also used to retrieve the role’s ARN.

IAM Role Support » External Id Vault Key

Enter the key to look up in the HashiCorp Vault that is also used to retrieve the external ID.

IAM Role Support » MFA Serial Number Vault Key

Enter the key to look up in the HashiCorp Vault that is also used to retrieve the MFA serial number.

IAM Role Support » STS Token Durantion

Enter the duration of time (in seconds), for which the obtained session token will be valid.

View Vault GitHub App

Label	Description
Vault GitHub App ID key	Enter a key to look up in the HashiCorp Vault that is also used to retrieve the GitHub App ID value. This is a required field.
Vault GitHub App private key	Enter the key to look up in the HashiCorp Vault that is also used to retrieve the GitHub App ID SSH private key. This is a required field.
Description	Enter a description of the credential. This is an optional field.
ID	Enter a unique internal ID that identifies the Vault GitHub App credential from jobs and other configurations. If this field is left blank, the ID is automatically generated.

Label

Description

Vault GitHub App ID key

Enter a key to look up in the HashiCorp Vault that is also used to retrieve the GitHub App ID value. This is a required field.

Vault GitHub App private key

Enter the key to look up in the HashiCorp Vault that is also used to retrieve the GitHub App ID SSH private key. This is a required field.

Description

Enter a description of the credential. This is an optional field.

Enter a unique internal ID that identifies the Vault GitHub App credential from jobs and other configurations. If this field is left blank, the ID is automatically generated.

View Vault SSH Private Key

Label	Description
Vault username key	Enter the key to look up in the HashiCorp Vault that is also used to retrieve the username. This is a required field.
Vault private key	Enter the key to look up in the HashiCorp Vault Key that is also used to retrieve the SSH private key. This is a required field.
Vault passphrase key	Enter the key to look up in the HashiCorp Vault that is also used to retrieve the SSH passphrase.
Description	Enter a description of the credential. This is an optional field.
ID	Enter a unique internal ID that identifies the Vault SSH Private Key credential from jobs and other configurations. If this field is left blank, the ID is automatically generated.

Label

Description

Vault username key

Enter the key to look up in the HashiCorp Vault that is also used to retrieve the username. This is a required field.

Vault private key

Enter the key to look up in the HashiCorp Vault Key that is also used to retrieve the SSH private key. This is a required field.

Vault passphrase key

Enter the key to look up in the HashiCorp Vault that is also used to retrieve the SSH passphrase.

Description

Enter a description of the credential. This is an optional field.

Enter a unique internal ID that identifies the Vault SSH Private Key credential from jobs and other configurations. If this field is left blank, the ID is automatically generated.

View Vault Secret File

Label	Description
Vault key	Enter the key to look up in the HashiCorp Vault that is also used to retrieve the secret file content. This is a required field.
Description	Enter a description of the credential. This is an optional field.
ID	Enter the credential ID. If this field is left blank, the ID is automatically generated.

Label

Description

Vault key

Enter the key to look up in the HashiCorp Vault that is also used to retrieve the secret file content. This is a required field.

Description

Enter a description of the credential. This is an optional field.

Enter the credential ID. If this field is left blank, the ID is automatically generated.

View Secret text

Label	Description
Value key	Enter the key to look up in the HashiCorp Vault that is also used to retrieve the secret text. This is a required field.
Description	Enter a description of the credential. This is an optional field.
ID	Enter the credential ID. If this field is left blank, the ID is automatically generated.

Label

Description

Value key

Enter the key to look up in the HashiCorp Vault that is also used to retrieve the secret text. This is a required field.

Description

Enter a description of the credential. This is an optional field.

Enter the credential ID. If this field is left blank, the ID is automatically generated.

View Username Password

Label	Description
Vault username key	Enter the key to look up in the HashiCorp Vault that is also used to retrieve the username. This is a required field.
Vault password key	Enter the key to look up in the HashiCorp Vault that is also used to retrieve the password value. This is a required field.
Description	Enter a description of the credential. This is an optional field.
ID	Enter the credential ID. If this field is left blank, the ID is automatically generated.

Label

Description

Vault username key

Enter the key to look up in the HashiCorp Vault that is also used to retrieve the username. This is a required field.

Vault password key

Enter the key to look up in the HashiCorp Vault that is also used to retrieve the password value. This is a required field.

Description

Enter a description of the credential. This is an optional field.

Enter the credential ID. If this field is left blank, the ID is automatically generated.

Select Create.

Adding a credential within a job

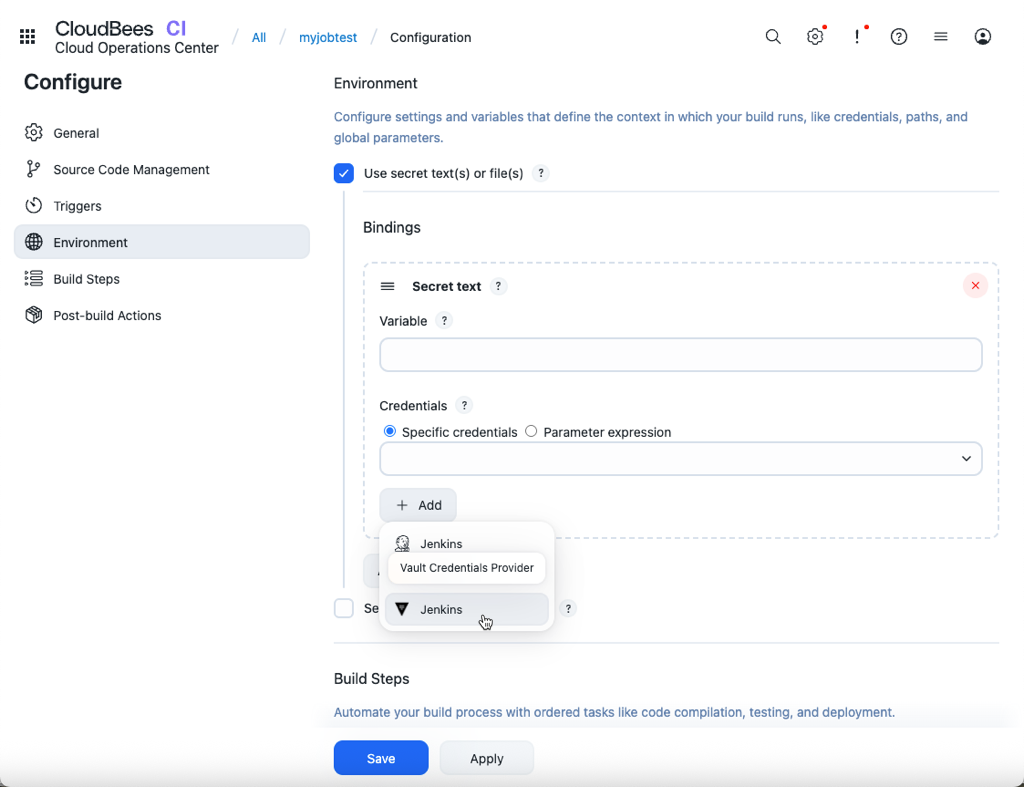

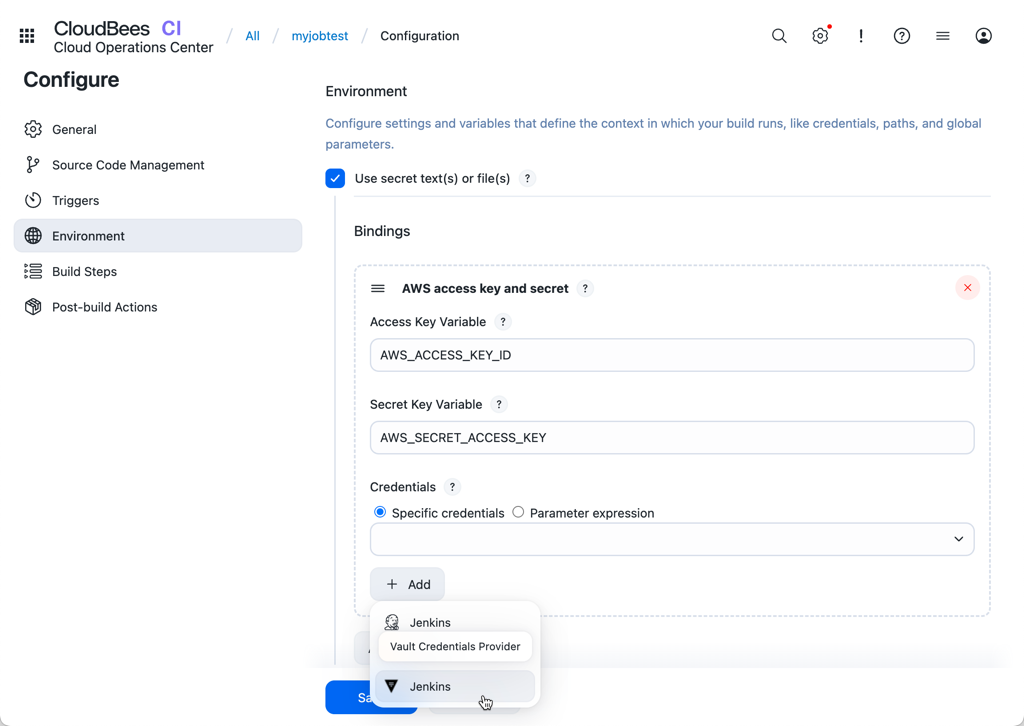

You can add HashiCorp Vault credentials from the configuration page of a specific job.

To create a HashiCorp Vault credential within a job:

From the Dashboard, select a controller.
Navigate to a specific job and select Configure from the dropdown list.
Navigate to the Build Environment section and select Use secret text(s) or files(s).
Under Bindings, select Add Secret text.
Enter details about the Secret text.
- Variable: Enter the name of an environment variable to be set during the build.
- Credentials: Select Specific credentials to set a specific credential type for the variable.
- Select Add and then select a Vault Credential Provider.

Adding credentials to pipelines

Run the following commands to add a HashiCorp Vault credential to a pipeline.

Vault Username Password

withCredentials([usernamePassword(credentialsId: 'vault-creds', passwordVariable: 'PASS', usernameVariable: 'USER')]) {
    sh 'echo USER=$USER'
    sh 'echo PASS=$PASS'
}▼

Vault Secret Text

withCredentials([string(credentialsId: 'vault-creds', variable: 'TOKEN')]) {
    sh 'echo TOKEN=$TOKEN'
}▼

Using the HashiCorp Vault credential in CasC yaml file

You can use Configuration as Code to configure the HashiCorp Vault plugin on your CloudBees CI instance. On your controller bundle, add the following code to the jenkins.yaml and items.yaml files:

jenkins.yaml

globalCredentialsConfiguration:
  vaultGlobalConfiguration:
    url: "https://vault-cluster-public-vault-****.z1.hashicorp.cloud:8200"
    skipSslVerification: false
    authentications:
      - appRoleAuthentication:
          id: "global-admin-approle"
          namespace: "admin"
          roleId: "****"
          secretId: "****"
      - appRoleAuthentication:
          id: "ci-approle"
          namespace: "ci"
          roleId: "****"
          secretId: "****"

credentials:
  cloudbeesHashicorpVault:
    domainCredentials:
      - credentials:
        - vaultUsernamePassword:
            scope: GLOBAL
            id: "test-username-password-id"
            description: "test vault username password"
            usernameKey: "user"
            passwordKey: "password"
            vaultSecretEngine:
              genericKV1SecretEngine:
                authenticationId: "ci-approle"
                path: "jenkins/secrets"
        - vaultSecretText:
            scope: GLOBAL
            id: "test-secret-text-id"
            description: "test vault secret text"
            secretKey: "password"
            vaultSecretEngine:
              genericKV2SecretEngine:
                authenticationId: "global-admin-approle"
                path: "jenkins/pldi"▼

items.yaml

removeStrategy:
  rbac: SYNC
  items: NONE
items:
- kind: folder
  name: Performance Team
  description: ''
  displayName: Ops Team
  properties:
  - envVars: {}
  - itemRestrictions:
      filter: false
- kind: folder
  name: CI Team
  description: ''
  displayName: CI Team
  properties:
  - envVars: {}
  - itemRestrictions:
      filter: false
  - vaultAuthenticationsFolderProperty:
      authentications:
      - appRoleAuthentication:
          roleId: ****
          namespace: admin/demo/name
          secretId: ****
          id: developers-approle
      - appRoleAuthentication:
          roleId: ****
          namespace: ops-namespace
          secretId: ****
          id: ops-approle
      credentials:
      - vaultUsernamePassword:
          usernameKey: username
          vaultSecretEngine:
            genericKV2SecretEngine:
              path: jenkins-kv/user1
              authenticationId: developers-approle
          scope: GLOBAL
          description: test vault username password with namespace admin/demo/dima
          id: folder-username-password-id
          passwordKey: password
      - vaultSecretText:
          secretKey: password
          vaultSecretEngine:
            genericKV2SecretEngine:
              path: jenkins/pldi
              authenticationId: global-admin-approle
          scope: GLOBAL
          description: test vault secret text with global namespace admin
          id: folder-secret-text-id▼

For information about the CloudBees HashiCorp Vault plugin requirements and releases, refer to CloudBees HashiCorp Vault Plugin.
