Restricting access and delegating administration with Role-Based Access Control

The CloudBees Role-Based Access Control plugin allows a CloudBees CI administrator to define various security roles within the system they administer. Once the roles are defined, the administrator can assign those roles to groups of users. The assignment of roles can take place at the global level or be limited to specific objects within the system. The administrator can also delegate the management of groups for specific objects to specific users.

The Role-Based Access Control plugin combined with the Folders plugin provides a powerful solution for managing CloudBees CI shared by multiple teams of users. The administrator can create folders for each team and then create groups within those folders for each of the roles that team members have. Delegating the management of the group membership (but not the management of the roles assigned to groups) to the team leaders, the administrator can empower team leads to manage the permissions of their team. This reduces their own administrative overhead.

Concepts and definitions

The Role-Based Access Control plugin introduces a number of new concepts to Jenkins when enabled. These concepts and terms are used in many different systems other than Jenkins, however, this section defines their meaning within the plugin.

Permission: Permission is a basic capability, such as starting a job or configuring a build agent. There is a core set of permissions defined by Jenkins, but some plugins define further permissions. If an action within Jenkins requires a specific permission, then the user who wants to perform that action must have the required permission.
Role: A Role is a set of permissions grouped into some meaningful category. For example, a "developer" role might include viewing jobs, browsing workspaces, starting (or canceling) builds, and creating version control tags; but not configuring (or deleting) those jobs, managing the build agents they run on, or other permissions. The Role Based Access Control plugin allows the administrator to define as many roles as are needed. These definitions are made available throughout the system.
Security Realm: The Security Realm is responsible for establishing the identity of users after login. Jenkins ships with a number of security realm implementations and plugins can define additional ones, typically connecting to external services such as LDAP. Only one security realm can be active at a time.
External Group: An External Group is a group of users that are defined outside of the control of Jenkins and reported by the security realm. For example, when the LDAP security realm is active, the LDAP groups that a user is a member of are considered external groups by Jenkins. The same is true of the Active Directory security realm. Some security realms, such as the built-in "Jenkins own user database", do not support external groups.
Authorization Strategy: The Authorization Strategy picks up user definitions from the security realm and is responsible for determining what permissions users have on various objects within Jenkins. Jenkins ships with several authorization strategy implementations and plugins can define additional ones—including Role-Based Access Control. Only one authorization strategy can be active at a time; since Role-Based Access Control subsumes the functionality of most others this is unlikely to be a limitation.
Group: A Group (named a Local Group when there is a chance of ambiguity) is a set of external groups, individual users, and even other local groups, defined within Jenkins by the Role-Based Access Control plugin. Besides membership, a group may be granted some of the roles defined separately in Jenkins. Groups can be defined either at the root of Jenkins or within specific objects such as folders or single jobs. When defining a group within a specific object, that group is local to the object and any children (such as nested jobs and subfolders). A user’s effective permissions are the aggregate of all the roles assigned to the groups they are members of which are within the scope of the object they wish to act on.
Role Filter: A Role Filter may be defined on an object within Jenkins. It allows roles to be restricted from propagating through from the parents of the object. For example, if a specific job is to be hidden from all but a small team of users, a group is created in that job with the required roles assigned to that group. A role filter is then applied to the job to suppress other roles from propagating through from the parent. However, administrators can specify that certain roles are never filtered out.

Setting up the Role-Based Access Control plugin

Before configuring the Role-Based Access Control plugin, it is helpful to review the checklist in Pre-configuration checklist.

Table 1. Pre-configuration checklist
Check	Done
Do you have a list of roles do you want to define? It is usually best to start small, you can always add more later. If you are unsure, a reasonable minimal set could be: Read-only; Developer; Manager; and Administrator. Additionally, it is helpful to think about what you want those roles to be able to do.	Yes / No
Do you have a list of groups you want to define? You will typically require at least one local group for each role you define. If some roles are only being assigned to specific users or groups of users on specific objects, then each of those assignments will require a group local to that object.	Yes / No
Have you configured and tested your security realm? The first time you enable the Role-Based Access Control plugin, it defaults to a configuration where logged-in users can do anything and users cannot access the system anonymously. If you have not tested logging in to the system with the security realm you are using, enabling the Role-Based Access Control plugin may lock everyone out of the system. Refer to Recovering from a lock-out for details on how to restore access to the system in the event of a lock-out.	Yes / No
Does your security realm provide details of external groups? If the security realm does not provide details of external groups, then you (or someone you delegate permissions to) may have to manually maintain synchronization between the external group membership and any corresponding shadow local groups that you may define within Jenkins.	Yes / No
Is this the first time the Role-Based Access Control plugin will be enabled? The Role-Based Access Control plugin remembers its configuration even when a different authorization strategy is configured, this allows easier experimentation with the plugin. However, a side effect is that you may have to remove the existing configuration if you want to start from a clean slate. Refer to Completely resetting the configuration for details on how to remove any existing configuration.	Yes / No
Are there specific objects which require different permissions? If most of your jobs will have a permissive set of permissions, but a few jobs will have permissions restricted to specific users, then the typical design is to grant the permissive permissions at the root level, filter those permissions out on the few jobs that have restricted permissions, and define groups for the users who require permissions on the restricted jobs.	Yes / No

If you are still prototyping how the Role-Based Access Control plugin can help you, it can be useful to delay setting up a proper security realm while you are testing the Jenkins configuration. The Mock Security Realm plugin allows you to simulate having multiple users, as well as various external groups that can be bound to local groups. It provides no actual security (everyone has a dummy password), so replace it with another security realm before going into production.

Enabling the authorization strategy

Enable the Role-Based Access Control authorization strategy from the global security configuration screen (Manage Jenkins > Security). Navigate to the Authorization list and select Role-based matrix authorization strategy.

Figure 1. Enabling the Role-Based Access Control authorization strategy

The first time you enable the Role-Based Access Control plugin, it defaults to a configuration where logged in users have no restrictions and users cannot access the system anonymously. If you have not tested logging into the system with the security realm you are using, enabling the Role-Based Access Control plugin may lock everyone out of the system. Refer to Recovering from a lock-out for details on how to restore access to the system in the event of a lock-out.

When enabling this stategy, you can also select Typical initial setup from the Import strategy list. This option is only available when you are logged in, because it creates a group of "administrators" (with full permissions) of whom you are initially the sole member. For convenience, it also creates empty groups for "developers" and "browsers" with useful permission sets. However, you may want to add some existing users to developers, or add the special labels anonymous or authenticated to browsers, etc.

When the Role-Based Access Control authorization strategy is enabled, the following changes are made to the Jenkins interface:

Additional icons for Groups and Roles at the root of Jenkins as well as on any objects which support the definition of local groups. Refer to The main Jenkins screen with the additional icons for Groups and Roles.
An additional Manage Roles icon on the Manage Jenkins screen. Refer to The Manage Roles action from the main Manage Jenkins screen.

Figure 2. The main Jenkins screen with the additional icons for Groups and Roles

Figure 3. The Manage Roles action from the main Manage Jenkins screen

Configuring and managing roles

Roles are configured and managed from the Manage Roles screen accessed via the Manage Jenkins screen (See The Manage Roles action from the main Manage Jenkins screen). The first time the Role-Based Access Control authorization strategy plugins RBAC Authorization Strategy is enabled the Manage Roles screen should look something like The Manage Roles screen after the Role-Based Access Control authorization strategy plugins RBAC Authorization Strategy has been initially enabled. The screen consists of a table of check boxes with each row of the table corresponds to a role, and each column corresponding to a permission. By checking the boxes you can assign permissions to roles.

Figure 4. The Manage Roles screen after the Role-Based Access Control authorization strategy plugins RBAC Authorization Strategy has been initially enabled

There are two types of roles:

system role
user defined role

System roles cannot be removed. There are two system roles:

anonymous

This role is automatically assigned to any user that is not logged in. If you do not want anonymous users to be able to access the system then do not assign any permissions to the anonymous role.
authenticated

This role is automatically assigned to any user that is logged in. If you want very fine grained control over user permissions you may end up removing all permissions from this role.

To define a new role you type the name of the role you want to define into the Role to add text box (Adding a role called Administrator).

Figure 5. Adding a role called Administrator

Once you have typed the name in click the Add button. This will add a new row to the bottom of the table.

Once you have created the row for the new role, you can assign permissions for that role by clicking the appropriate checkboxes.

If you want to assign all permissions there is a Check all button at the far right of the screen. There is also a Clear all button to speed up clearing all the checkboxes in a specific row. See The three icons for: checking all the checkboxes in a row; clearing all the checkboxes in a row; and removing the role. and After clicking on the Check all icon for the Administrator role

If you install the Extended Read Permission plugin you will see another permission: to be able to view, but not change, configuration of objects such as jobs. This can be useful for certain roles; for example, a developer role might be granted this permission so that developers can more easily debug build failures while still requiring a project administrator to make changes to the job setup.

Sometimes one permission will automatically imply other permissions. For example, Overall/Administer usually implies every other permission (running Groovy scripts may be excluded). When you have checked the overarching permission but not other permissions it implies, these other permission checkboxes will be shown with a colored background to remind you that they are also implicitly part of the role.

Starting in version 5.25, Overall/Administrator no longer implies the permissions Overall/RunScripts, Overall/Uploadplugins, and Overall/ConfigureUpdateCenter. Roles configured prior to this update that contain the Overall/Administer permission automatically include these previously implicit permissions. New roles with Overall/Administer must explicitly select those three additional permissions when desired.

Figure 6. The three icons for: checking all the checkboxes in a row; clearing all the checkboxes in a row; and removing the role.

Figure 7. After clicking on the Check all icon for the Administrator role

If you need to delete a role, there is a remove button at the far right of the row for all the user-defined roles.

Normally roles are filterable: anyone with the Role/Filter permission on an object such as a folder is allowed to block that role from propagating into the object from its parent (such as Jenkins overall), possibly while allowing another group defined on the object to explicitly grant it. (See Configuring and managing role filters.) For some roles it is undesirable to permit this: a Jenkins administrative role ought to be valid anywhere in the system, so that a project manager cannot accidentally block even site administrators from seeing an otherwise private project. (That situation could be considered a kind of lockout.) For such roles you should uncheck the Filterable checkbox to make sure the role applies globally.

Once you have defined all the roles you require, you can save that configuration by clicking on the Save button.

Care should be taken when removing the Overall Administer permission, from roles, as it is possible to lock yourself out of administrative access. There are some safeguards which will protect you from obvious ways of locking out administrative access; however, as you may legitimately want to remove your own administrative access, the safeguards can only protect the obvious issues. See Recovering from a lock-out for details on how to restore access to the system in the event of a lock-out.

Configuring and managing groups

Groups can be defined at any point in Jenkins where the groups action is available. The following classes of objects support group definitions out of the box:

Jenkins itself
Jobs
Maven modules in a Maven project
Agents
Views
Folders

Other objects added by plugins can support group definitions if the required support is built into the plugin itself, or is added by an additional plugin. However, in general, the objects need to have been designed to allow other plugins to contribute actions in order for the group definition support to be possible.

Where an object does not support group definitions, the groups are inherited from the object’s parent.

As of November 2020, RBAC groups and role filters can no longer be configured on views, and those previously configured are not loaded. This change only affects the views themselves, not the items within them. Previous permissions applied to the items are still enforced. You can enable the ability to configure RBAC groups and role filters at the views level by setting the system property nectar.plugins.rbac.groups.ViewProxyGroupContainer.enabled=true. However, enabling this ability is not recommended for security reasons. See the Upgrade notes to better understand this change.

Clicking on the groups action will bring you to a screen similar to that shown in The initial groups screen for the root of a Jenkins instance.

Figure 8. The initial groups screen for the root of a Jenkins instance

You create a group using the New Group action which will prompt for the group name as in Creating a new group. Groups can be renamed after they are created. Group names are case sensitive and whitespace is allowed (although it can be confusing). When a group is created with the same name as a group from the parent context, it will hide the group from the parent context, however the permissions granted to members of the group will not be removed.

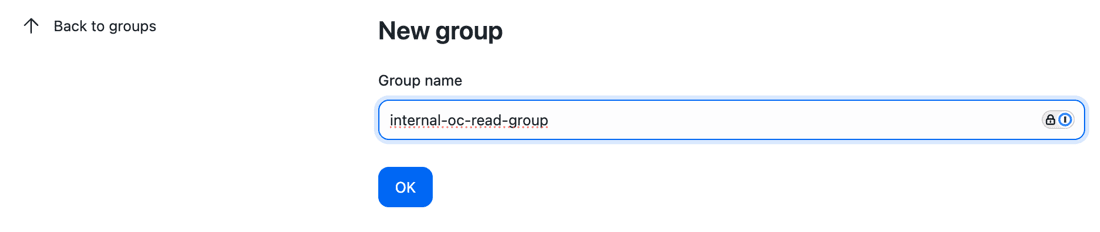

Figure 9. Creating a new group

After the group has been created, depending on the effective permissions of the user creating the group, one of two screens will be displayed. Users with the Group Configure permission will be shown the Configuration screen (Configuring a group), otherwise the user will be taken straight to the group details screen (Managing a group). This differentiation is key to effectively allowing administrators to delegate some of the administrative responsibility.

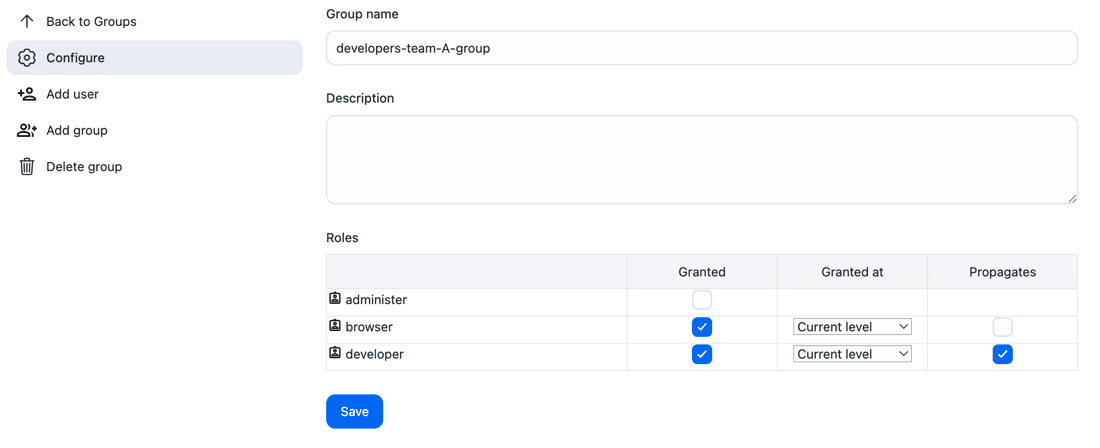

Figure 10. Configuring a group

The Configuration screen is the screen where roles are assigned to a group. By restricting access to this screen, an administrator can ensure that groups cannot be created with permissions greater than those intended by the administrator. The Group Manage permission can then be assigned to specific users in order to allow them to manage the membership of groups without risking them escalating their own permissions by the addition of extra roles to groups they belong to.

Where a role is granted to a group, the role can be granted in one of two modes. Be default the role is granted in the Propagates mode. This means that the role will be available in child contexts. By clearing the Propagates checkbox, you can create a pinned role ( ) that is only available on the specific object that the group is created on. Some examples where a pinned role can be useful would be:

A pinned group creation role at the root allows creating groups at the root while preventing creating groups on jobs.
A pinned role in a Maven Project job which allows building the job in order to prevent users from triggering builds of individual modules within the Maven Project job.
When using the Folders plugin, a pinned group creation role on a folder allows creating groups at the in the folder while preventing creating groups on sub-folders.

After the configuration has been saved, the user will be taken to the group details screen (Managing a group).

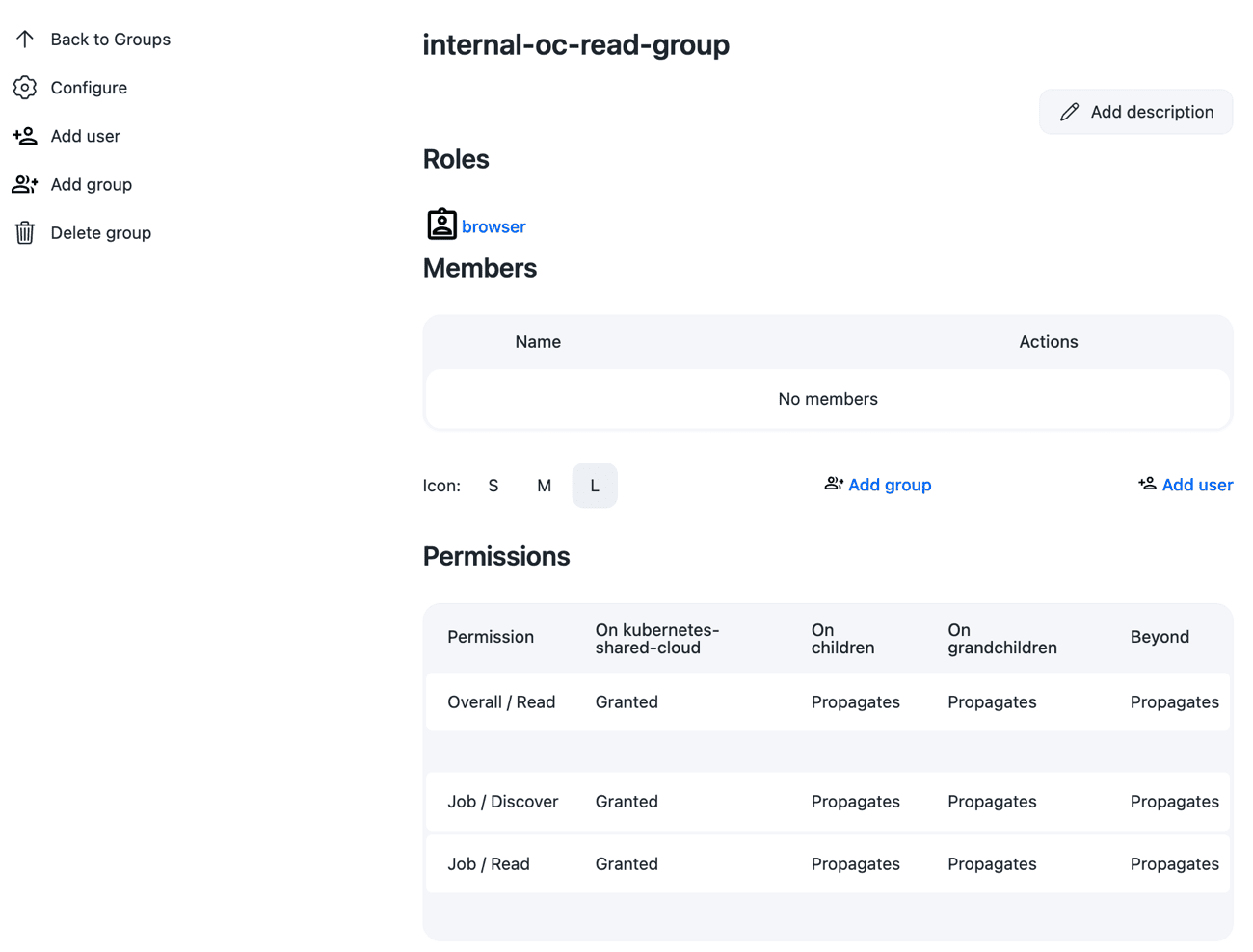

Figure 11. Managing a group

The Add user/group action is used to add a member to the group. After clicking the action you will be prompted to enter the id of the user/group to add (Adding a member to a group).

Figure 12. Adding a member to a group

The ID that you enter can be any of:

A user id
A group name from the current context
A group name from any of the parent contexts
An external group id from the security realm

You can add as many members as you like. A group with multiple members: another group; an external group; and a user shows a group containing three members, one of each type. Circular membership is permitted, i.e. a group can have as a member a group that it is a member of. When adding external groups the http:// Jenkins-URL /whoAmI page can be useful to figure out what the external group IDs actually are.

Figure 13. A group with multiple members: another group; an external group; and a user

Members of a group can be removed by clicking on the member’s remove icon. There is a two step confirmation for removing a member and you must confirm the removal by clicking on the confirmation icon. (Removing a member from a group requires two step confirmation)

Figure 14. Removing a member from a group requires two step confirmation

For information on how to troubleshoot a specific issue, refer to Authenticated and Anonymous users are not added on RBAC. If you need more information or assistance, search the Knowledge Base or open a CloudBees Support ticket.

Configuring and managing role filters

Role filters can be defined at any point in Jenkins where group definitions are supported and roles are inherited from a parent of that object. By default, the following objects will support role filtering:

Jobs
Maven modules in a Maven project
Agents
Views
Folders

Clicking on the roles action will bring you to the Roles screen, where you can see the roles, permissions, and groups that are assigned to each of the roles for an object and its children.

If the object supports role filters then the Filter action will be available from that screen. Clicking on the Filter icon will bring you to a screen similar to that shown in The role filter screen for a job within a Jenkins instance where two roles are being filtered out.

Figure 15. The role filter screen for a job within a Jenkins instance where two roles are being filtered out

To filter a role, you just check the corresponding check-box. When a role is filtered, then the role is not available on that object to users unless there is a group defined within that object which the user is a member of and which has been assigned that role.

As mentioned in Configuring and managing roles, administrators can mark certain important roles as being non-filterable. In such a case, they will not appear in the Filter Roles page at all.

For more information or troubleshooting specific issues, refer to the following articles:

If more information or assistance is necessary, search the Knowledge Base or open a CloudBees Support ticket.

Example Configurations

This section details some solutions to common configuration requirements. There are other ways to solve these configuration requirements, and there is no one "correct" solution for any of these, so it is better to think of these as examples of what can be done.

Instance owned by one cross-functional team

Background.

This example considers the case where there is one team of users owning the single instance. The team consists of multiple people with different roles. The most common roles in this case are:

Developer: Kick off builds and modify job configuration
Tester: Kick off builds, access build artifacts, and create SCM tags
Manager: Manage user roles in the team and create projects
Admin: Administer the system
Read only: Requires read access to the system but cannot download build artifacts

Sample solution.

Create one role for each role of user: developer_role, tester_role, manager_role, admin_role, and reader_role. Additionally, create one group at the root level for each role of user, assigning the corresponding role to each group: developers, testers, managers, admins and readers. Finally, add the members to each group as necessary.

Table 2. Sample roles for an instance owned by one cross-functional team
Role	Permissions
developer_role	Job \| Configure Job \| Build
tester_role	Job \| Build Job \| Workspace SCM \| Tag
manager_role	Job \| Create Job \| Delete View \| Create View \| Delete View \| Configure Group \| Manage
admin_role	Overall \| Administer Overall \| RunScripts Overall \| Uploadplugins Overall \| ConfigureUpdateCenter
reader_role	Overall \| Read Job \| Read Group \| View Role \| View

Table 3. Sample groups for an instance owned by one cross-functional team
Context	Group	Role(s)	Member(s)
ROOT	developers	developer_role	All the developers
ROOT	testers	tester_role	All the testers
ROOT	managers	manager_role	All the manager(s)
ROOT	admins	admin_role	All the administrator(s) of the instance
ROOT	readers	reader_role	Group: developers Group: testers Group: managers Group: admins All the people requiring read-only access not covered by the above groups

Instance shared by multiple cross-functional teams

This example considers the case where there are multiple teams of users sharing a single instance. Each team consists of multiple people with different roles. The most common roles in this case are:

Build Manager: Create, modify, and delete job configurations
Developer: Kick off their builds
Tester: Kick off their builds, access build artifacts, and create SCM tags
Manager: Manage user roles in their teams
Admin: Administer the system
Read only: Authenticated user that requires read access to the system but is not be able to download build artifacts

Sample solution

Create one role for each role of user: builder_role, developer_role, tester_role, manager_role, admin_role, and reader_role. Additionally, create two groups at the root level for the administrators and readers, assigning the corresponding role to each group: admins and readers respectively. Use the folders plugin to create folders for the two teams, and in each folder create groups for the builders, developers, testers and managers of the respective teams. Finally, add the members to each group as necessary.

Table 4. Sample roles for an instance shared by multiple cross-functional teams
Role	Permissions
builder_role	Job \| Create Job \| Delete Job \| Configure Job \| Build Job \| Workspace
developer_role	Job \| Build
tester_role	Job \| Build Job \| Workspace SCM \| Tag
manager_role	Job \| Create Job \| Delete View \| Create View \| Delete View \| Configure Group \| Manage
admin_role	Overall \| Administer Overall \| RunScripts Overall \| Uploadplugins Overall \| ConfigureUpdateCenter
reader_role	Overall \| Read Job \| Read Group \| View Role \| View

Table 5. Sample groups for an instance shared by multiple cross-functional teams
Context	Group	Role(s)	Member(s)
ROOT	admins	admin_role	All the administrator(s) of the instance
ROOT	readers	reader_role	System identity: authenticated
Team 1 Folder	builders	builder_role	All the build managers in team 1
Team 1 Folder	developers	developer_role	All the developers in team 1
Team 1 Folder	testers	tester_role	All the testers in team 1
Team 1 Folder	managers	manager_role	All the manager(s) of team 1
Team 2 Folder	builders	builder_role	All the build managers in team 2
Team 2 Folder	developers	developer_role	All the developers in team 2
Team 2 Folder	testers	tester_role	All the testers in team 2
Team 2 Folder	managers	manager_role	All the manager(s) of team 2

Instance shared by multiple single-function teams

Background.

This example considers the case where there are multiple teams of users sharing the single instance. Each team consists of multiple people with the same role. The most common teams in this case are:

Development - responsible for developing a single product
SQA - responsible for testing many products
DevOps - responsible for deploying many products into production

Sample solution.

Create one role for each role of user: developer_role, sqa_role, devops_role. Then create groups for the sqa and devops teams at the root level assigning the corresponding role to each group: sqa, devops. Use the folders plugin to create folders for each product and within each folder create a developers group assigned the developer_role. Complete the configuration by adding the members of each team as members of the corresponding groups.

Sample roles for an instance shared by multiple single-function

teams

Role	Permissions
developer_role	Job \| Create Job \| Delete Job \| Configure Job \| Build Job \| Workspace
tester_role	Job \| Build Job \| Workspace SCM \| Tag
devops_role	Job \| Configure Job \| Build Job \| Workspace SCM \| Tag

Role

Permissions

developer_role

Job | Create
Job | Delete
Job | Configure
Job | Build
Job | Workspace

tester_role

Job | Build
Job | Workspace
SCM | Tag

devops_role

Job | Configure
Job | Build
Job | Workspace
SCM | Tag

Sample groups for an instance shared by multiple single-function

teams

Context	Group	Role(s)	Member(s)
ROOT	sqa	sqa_role	All the people in the SQA team
ROOT	devops	devops_role	All the people in the DevOps team
Product 1 Folder	developers	developer_role	All the developers of product 1
Product 2 Folder	developers	developer_role	All the developers of product 2

Context

Group

Role(s)

Member(s)

ROOT

sqa

sqa_role

All the people in the SQA team

ROOT

devops

devops_role

All the people in the DevOps team

Product 1 Folder

developers

developer_role

All the developers of product 1

Product 2 Folder

developers

developer_role

All the developers of product 2

Secret projects on a shared instance

Background.

This example considers the case where you want to have a secret project on a shared instance. The project will be worked on by a small team who should be able to see the project, but everyone outside of that team will be unable to see the project.

If somebody has access to the JENKINS_HOME directory, they will be able to see the secret project. Similarly, by creating an appropriate build script, a non-secret project could gain access to the secret project when building on a file system that the secret project has also built on. If it is absolutely critical that the project remain secret, then it may be best to use a dedicated instance for the project.

For most use cases, however, the project is being kept secret from people who both do not have direct access to the JENKINS_HOME directory, and do not have access to creating build jobs or modify the source code.

Sample solution.

Create a group in the project (or folder) for the team of people who will be working on the secret project. Add all the roles that the team will require. Add all the members of the team. Modify the role filters for the project (or folder) filtering out every role (or all but the administrator role if administrators are to be allowed to view the project).

If you are configuring a secret project to which you will not have access, once you apply the role filters you will be locked out from the project, and it will appear as if there is no such project. See Finding hidden projects for details on how to recover from accidental lock-outs of this type.

It may also be advisable to create a group for admins of the secret project before configuring the role filters if only a subset of those with the overall administrator role are to be able to see the secret project.

Scripting RBAC with CLI commands

Sometimes it is useful to perform large-scale operations on a CloudBees CI server using scripts. The RBAC plugin provides CLI commands for managing the security setup. It also provides REST API, which is described in REST API in RBAC plugin.

group-membership

Having defined some roles and groups, a common requirement is to change the list of users authorized in a given group. To support this operation from scripts, the group-membership CLI command is available in plugin versions 4.1 and later. The first argument identifies the group container:

root for the root of Jenkins
jobname or foldername or foldername/jobname for a job, a folder, or any other item in the Jenkins folder hierarchy that can hold groups
viewname or foldername/viewname for a view
agentname for an agent node

The second argument is the name of an existing group. With no additional arguments, all the members of the group are printed, one per line. (These "members" might be user IDs, or Jenkins or external group names.) If additional arguments are given, the group membership is set to the listed members (replacing any current members). If a listed member is ambiguous (there are both a user and group with the same name) then CloudBees recommends to prefix the name with either "user:" or "group:" in order to ensure the correct object is added to the membership list.

create-group

Creating a group can be performed via the create-group CLI command, which is available in plugin versions 4.9 and later. The first argument identifies the group container:

root for the root of Jenkins
jobname or foldername or foldername/jobname for a job, a folder, or any other item in the Jenkins folder hierarchy that can hold groups
viewname or foldername/viewname for a view
agentname for an agent node

The second argument is the name of the group to create.

delete-group

Deleting a group can be performed via the delete-group CLI command, which is available in plugin versions 4.9 and later. The first argument identifies the group container:

root for the root of Jenkins
jobname or foldername or foldername/jobname for a job, a folder, or any other item in the Jenkins folder hierarchy that can hold groups
viewname or foldername/viewname for a view
agentname for an agent node

The second argument is the name of the group to delete.

group-role-assignments

Assigning or listing group roles can be performed via the group-role-assignments CLI command, which is available in plugin versions 4.9 and later. The first argument identifies the group container:

root for the root of Jenkins
jobname or foldername or foldername/jobname for a job, a folder, or any other item in the Jenkins folder hierarchy that can hold groups
viewname or foldername/viewname for a view
agentname for an agent node

The second argument is the name of the group.

With no additional arguments, the current group roles will be printed. By default, the roles are printed one by line in the format used to assign them. To print them in a more readable format, use the -e (--expanded-display) command line option.

If additional arguments are given, the group roles are set to the listed roles (replacing any current roles).

Each role follows the format: ROLE[,GRANTED_AT[,PROPAGATES]] GRANTED_AT=0|1|2 (0:current level, 1: Child level, 2: Grand child level), PROPAGATES=true|false. For example: developer,0,true will assign the "developer" role at the current level and the role will be available in child contexts.

list-groups

Listing existing groups can be performed via the list-groups CLI command, which is available in plugin versions 4.11 and later. The argument identifies the group container:

root for the root of Jenkins
jobname or foldername or foldername/jobname for a job, a folder, or any other item in the Jenkins folder hierarchy that can hold groups
viewname or foldername/viewname for a view
agentname for an agent node

REST API in RBAC plugin

The REST API in RBAC plugin documentation has been moved. See API Reference - RBAC for more information.

Troubleshooting

Recovering from a lock-out

There are two ways to recover from a lock-out. Both require that the Jenkins instance be stopped and then restarted after completion of the steps.

The first way will remove all the roles that are defined in the system but does not require any manual editing of XML files

Example 1. Recovering from a lock-out by removing all roles (on Unix-based systems)

Ensure that the Jenkins instance is stopped.
Open a shell
Change into the JENKINS_HOME directory
```
$ cd $JENKINS_HOME▼
```
Remove/rename the nectar-rbac.xml configuration file
```
$ mv nectar-rbac.xml nectar-rbac.xml.old▼
```
Start the Jenkins instance.

Example 2. Recovering from a lock-out by removing all roles (on Windows-based systems)

Ensure that the Jenkins instance is stopped.
Open a command prompt
Change into the JENKINS_HOME directory
```
C:\> cd %JENKINS_HOME%▼
```

Remove/rename the nectar-rbac.xml configuration file

C:\...\Jenkins> ren nectar-rbac.xml nectar-rbac.xml.old▼

Start the Jenkins instance.

The second way will not remove any of the roles that are defined in the system but requires manual editing of an XML file.

Example 3. Recovering from a lock-out by manually editing JENKINS_HOME/nectar-rbac.xml

Ensure that the Jenkins instance is stopped.
Open the JENKINS_HOME/nectar-rbac.xml in a text editor that can edit XML files

It is a good idea to make a backup copy of the file before changing it.

The file should look something like General structure of the nectar-rbac.xml file

Add the following line(s) into the role that you want to have the overall Administrator permission along with related administrative permissions

<permission id="hudson.model.Hudson.Administer"/>
<!-- below permissions are no longer implied by Administer since v5.25 -->
<permission id="hudson.model.Hudson.RunScripts"/>
<permission id="hudson.model.Hudson.Uploadplugins"/>
<permission id="hudson.model.Hudson.ConfigureUpdateCenter"/>▼

Save the file
Start the Jenkins instance.

General structure of the nectar-rbac.xml file

<?xml version='1.0' encoding='UTF-8'?>
<nectar.plugins.rbac.strategy.RoleMatrixAuthorizationplugin>
  <configuration class="...">
    ...
    <role name="...">
      <permission id="..."/>
      ...
    </role>
    ...
    <role name="anonymous">
      ...
    </role>
    <role name="authenticated">
      ...
    </role>
    ...
  </configuration>
</nectar.plugins.rbac.strategy.RoleMatrixAuthorizationplugin>▼

Completely resetting the configuration

If you want to completely reset all the Role-Based Access Control plugin’s configuration, an irreversible action, you can use the script console to remove all the user-defined roles, local groups and role filters on all the objects within your Jenkins instance.

There is no way to recover the user-defined roles, local groups and role filters after you have reset the configuration other than by restoring a backup of the complete system, and this may have the side effect of removing any changes that occur within the system after the configuration has been reset.

Only follow this procedure if you are absolutely sure that you want to wipe all the Role-Based Access Control plugin’s configuration

If you have been locked out of the system, you will need to follow one of the procedures in Recovering from a lock-out to recover administrative access.

Example 4. Completely resetting the RBAC configuration

Type the following into the script text box:

RoleMatrixAuthorizationPlugin rbacPlugin = RoleMatrixAuthorizationPlugin.getInstance()
if (rbacPlugin != null) {
    rbacPlugin.reset()
} else {
    println 'RBAC is not configured as Security Realm'
}▼

You should have a screen that looks like Using the script console to completely reset the Role-Based Access Control plugin’s configuration
Click on the Run button. The screen should now look like After successfully resetting the Role-Based Access Control plugin’s configuration via the script console

Figure 16. Using the script console to completely reset the Role-Based Access Control plugin’s configuration

Figure 17. After successfully resetting the Role-Based Access Control plugin’s configuration via the script console

Finding hidden projects

You can remove permissions for a project by filtering out roles on that project using a role filter. In general, it is best to add groups and roles to a project before applying the role filter, as if you filter all roles, you will be locked out from accessing the project completely. The strategy of filtering out all roles can be used to create secret projects, but there are times when it is necessary to recover or discover the projects that are hidden.

While there are various workarounds for this situation, best is to make sure that there is at least one administrative role with all permissions which is not filterable (see Configuring and managing roles). The Jenkins administrator should grant this role to a group containing themselves, and the secret project will be visible again.

Configuring a bypass of the recursive permissions check

An authorization issue with the Role-Based Access Control plugin previously made it possible for users to view nested resources, even if they did not have permission to view the parent resources. This issue has been resolved with version 5.54 of the Role-Based Access Control plugin, and permissions are checked on the parent container, in addition to the target container. Additionally, a new caching mechanism improves performance while browsing system resources.

If you observe performance issues after upgrading to CloudBees CI version 2.277.1.2.2, you can disable the permissions enforcement by setting the following system property:

nectar.plugins.rbac.strategy.RoleMatrixAuthorizationPlugin.checkParentPermissions=false▼

If you observe inconsistencies in how permissions are applied after updating them, you can also disable the caching mechanism using the following system property:

nectar.plugins.rbac.strategy.RoleMatrixAuthorizationPlugin.cacheSize=0▼

Make sure that the Item.READ permissions are properly configured before disabling the caching mechanism.

Please note that CloudBees recommends that you do not disable the permissions enforcement or the caching mechanism.

Example

Administrators with a CloudBees CI cluster supporting multiple teams of users can delegate some management powers to team leads and limit the permissions that unauthenticated and other users have to make changes and view items in the cluster. Delegating the assignment of such permissions to project administrators allows teams to define more granular permissions for specific projects and objects within their controller, enabling them to do things like hiding a "secret" project from other teams.

These fine-grained permissions are enabled through the Role-Based Access Control (RBAC) Authorization Strategy defined by an administrator in the operations center Global Security Configuration.

Administrators define various security roles for use in their cluster and assign those roles to groups of users, including groups and users imported from an authentication server like LDAP.

To illustrate this use case, consider the following scenario where an administrator has two configured client controllers with some Folders configured for projects:

Controller-1
- developers-team-A-folder (Working folder for developers-team-A-group)
- another-folder (accessible by everyone)
Controller-2

The administrator in this scenario will support four different teams with their CloudBees CI cluster. Each team will only need access and permissions over a very limited set of items within the context of the CloudBees CI cluster, specifically:

Developers team A - Within CloudBees CI, this group will be called internal-developers-team-A-group. They should only have read access to the operations center instance and only be able to access to Controller-1. In Controller-1, these users should only see the folder developers-team-A-folder.
Developers team B - Within CloudBees CI, this group will be called internal-developers-team-B-group. They should only have read access to the operations center instance and should only be able to access to Controller-2.
Tester team - Within CloudBees CI, this group will be called internal-tester-team-group. They should only have read access to the operations center instance and should be able to access to Controller-1 and Controller-2.
Admin team - Within CloudBees CI, this group will be called internal-admin-team-group. They should be able to administer the operations center and client controllers systems.

There are at least two levels of permissions for an administrator to consider when configuring permissions - permissions over the cluster itself (operations center-level) and permissions over particular controllers, the administrator will first need to log into operations center and creates roles and groups.

Roles are sets of configured permissions that can be assigned to groups, and they are configured from the Roles > Manage Roles configuration page.

Out of the box, operations center offers two options - anonymous and authenticated. For this scenario, administrators want to create 3 new roles in operations center with the following permissions:

Table 6. Sample roles for a CloudBees CI cluster
Role	Permissions
read_role	Overall \| Read Job \| Read
admin_role	Overall \| Administer
developer_role	Overall \| Read Job \| Read Job \| Configure Job \| Build

Setting up operations center-level access controls

In this scenario, the administrator wants to delegate administer permissions, so the internal-oc-admin-group will be assigned the default pre-configured admin_role. All users in that group will be able to perform cluster management functions in operations center, so membership for this group should be limited to only the Admin team in this example organization. This configuration is propagated to all connected controllers, so operations center-level admins will also have Administer permissions over those controllers.

For non-admin teams, the administrator will want to prevent them from changing any configurations to the cluster in operations center, and so the administrator will need to create another group - internal-oc-read-group - and assign to that group the pre-configured read_role. Developer teams and Tester team belong in this group, as they will have limited interactions with operations center and therefore do not need any permissions above read access at the operations center-level.

Groups can be created and configured from the "Groups" item in the left-hand menu. Once a group has been added, administrators will be able to assign roles and users to the group.

Table 7. Sample operations center-level groups
Context	Group	Role(s)	Member(s)
ROOT	internal-oc-admin-group	admin_role (current level/propagation)	All the administrator(s) of the operations center instance
ROOT	internal-oc-read-group	read_role	developers-team-A-group developers-team-B-group tester-team-group

Once the administrator has added themselves to a group with the admin_role, the administrator should disable the default roles of authenticated and anonymous. The *authenticated permission includes overall administration permissions and is no longer necessary once a formal admin role exists and is assigned to an administration group.

Setting up access controls on connected controllers

In this scenario, the administrator wants to limit the Developer teams’ access to only their team’s controller while giving the Tester team access to both. This configuration protects teams from unauthorized users accessing their credentials and artifacts while still empowering a trusted team to access only the resources they need. Within the controller itself, administrators can also set up specific permissions to restrict access on certain objects, such as a folder containing a "secret" internal project.

In this scenario, the administrator will configure permissions on two folders that exist on Controller-1 - the developers-team-A-folder, which will be restricted to only the developers-team-A-group as a "secret project", and another-folder, which will be accessible by everyone logged into the instance.

To achieve this, the administrator will configure the following groups and roles on the following controllers:

Table 8. Sample controller-level groups
Context	Group	Role(s)	Member(s)
ROOT	internal-oc-read-group	read_role	developers-team-A-group developers-team-B-group tester-team-group
Controller-1	internal-developers-team-A-group	read_role (current level/no propagation)	developers-team-A-group
Controller-1	internal-controller-1-group	developer_role (current level/propagation) read_role (current level/no propagation)	tester-team-group
Controller-1/developers-team-A-folder	internal-developers-team-A-group	developer_role (current level/propagation)	developers-team-A-group tester-team-group
Controller-2	internal-controller-2-group	developer_role (current level/propagation)	developers-team-B-group tester-team-group

Once these settings are configured any member of the internal-developer-team-A-group who logs into operations center will only be able to access to the Controller-1/developers-team-A-folder.

Migrating from versions prior to 5.65

Prior to version 5.65 of the Role-Based Access Control Plugin, users were not distinguished from groups in the RBAC configuration. While it is unlikely that a user and group would be configured with the same name, there were some reported scenarios where this limitation caused misconfigurations. In version 5.65 of the Role-Based Access Control Plugin, an update was made to ensure that users and groups are now properly distinguished and validated when added.

When upgrading to CloudBees CI version 2.319.2.5 or later, any group member who could not be automatically identified as a unique user or group is highlighted as ambiguous on the Groups page.

To resolve the conflicts, select the ambiguous user or group and then select either the Migrate as a user icon or the Migrate as a group icon.

Migrating from versions prior to 5.42

In version 5.42 of the Role-Based Access Control Plugin, CloudBees moved RBAC configurations from the config.xml file to a new file named nectar-rbac.xml. Migration data is now spread across multiple plugins, and if all the plugins are not upgraded at the same time as the RBAC plugin, the RBAC migration may not be completed successfully.

If you upgrade plugins using the Beekeeper Upgrade Assistant, and you selected Allow automatic upgrades of plugins on restart, all the plugins are upgraded at the same time and the migration to version 5.42 is successful.

However, if you manually upgraded the RBAC plugin to version 5.42 without upgrading the following plugins, the upgrade may not be complete:

Operations Center Server Role Based Access Control
CloudBees Update Center
CloudBees Template

If one or more of the plugins above was not upgraded at the same time as the RBAC version 5.42 plugin, the migration did not complete successfully. Complete the following steps to fix the migration:

Remove the marker file at JENKINS_HOME/.nectar-rbac-separated-group-containers-migrated-v2.
Install or upgrade the following plugins to the version numbers specified below:
- Operations Center Server Role Based Access Control 2.249.0.5+
- CloudBees Update Center 4.50+
- CloudBees Template 4.49+
Restart CloudBees CI.

For more information or troubleshooting a specific issue, refer to RBAC migration keeps running every restart but fails to complete.

If still having issues, refer to Required Data: RBAC issues for more information on the required data needed to open a CloudBees Support ticket.

Restricting access and delegating administration with Role-Based Access Control

Concepts and definitions

CloudBees TV

Setting up the Role-Based Access Control plugin

Enabling the authorization strategy

Configuring and managing roles

Configuring and managing groups

Configuring and managing role filters

Example Configurations

Instance owned by one cross-functional team

Instance shared by multiple cross-functional teams

Instance shared by multiple single-function teams

Secret projects on a shared instance

Scripting RBAC with CLI commands

group-membership

create-group

delete-group

group-role-assignments

list-groups

REST API in RBAC plugin

Troubleshooting

Recovering from a lock-out

Completely resetting the configuration

Finding hidden projects

Configuring a bypass of the recursive permissions check

Example

Setting up operations center-level access controls

Setting up access controls on connected controllers

Migrating from versions prior to 5.65

Migrating from versions prior to 5.42
